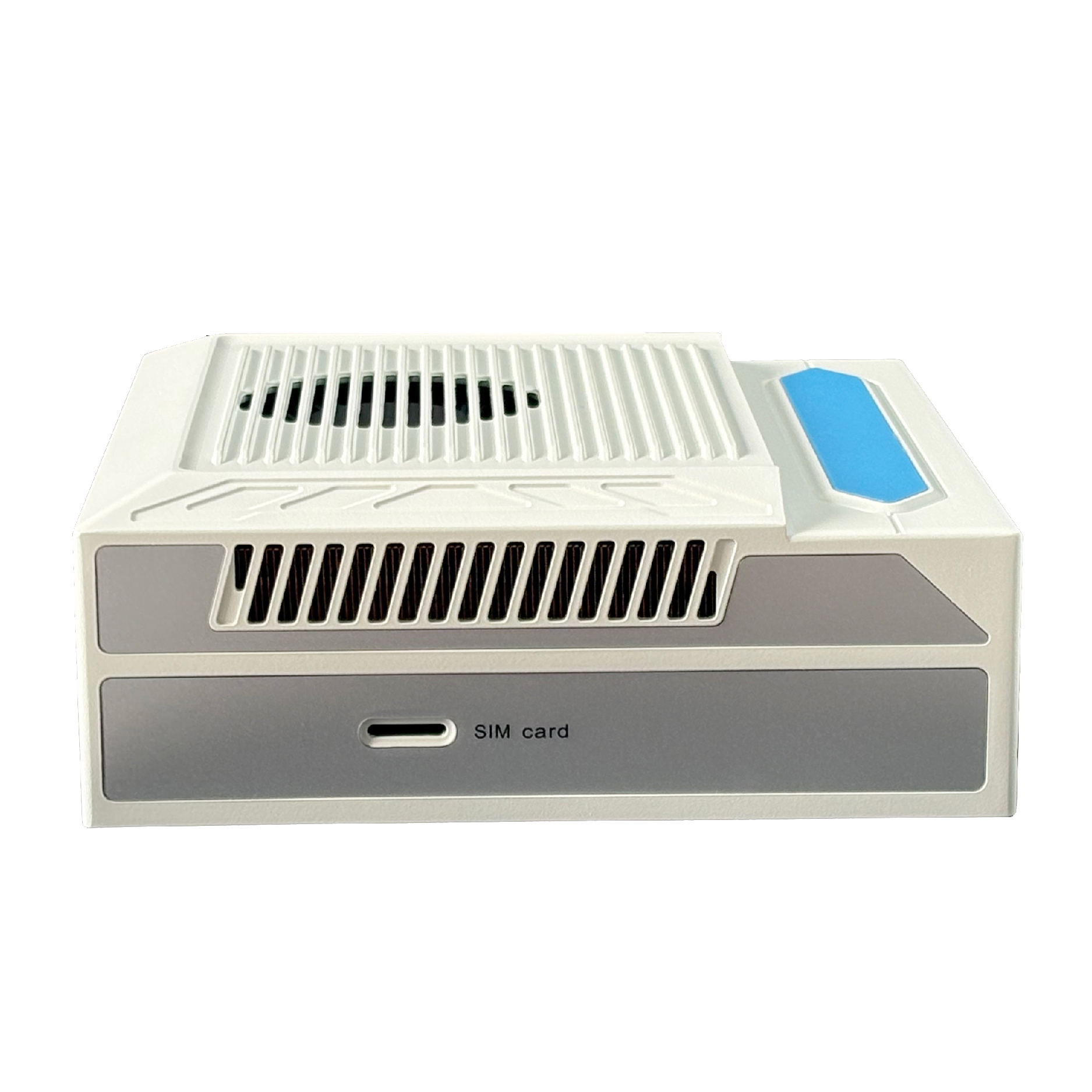

SEAVO Embedded Computer HB03

SEAVO Embedded Computer HB03, featuring a pioneering modular design, delivers an overall 300TOPS of AI Computing Power with compact size and high reliability.

Based on SCM (Seavo Compute Module)
Intel Core Ultra Series 2 (Arrow Lake-H) Processors, with integrated NPU and iGPU, AI Computing Power up to 96TOPS
Support MXM Expansion GPUs, max expandable AI Computing Power up to 300 TOPS
Modular design, flexible customization supported
Thick Model 150*142*78mm, with independent GPUs; Slim Model 150*142*53mm
Specification
General
CPU

Intel® Core™  Ultra Processors (Series 2) Processors, Arrow Lake-U/H,

with NPU and iGPU, up to 96TOPS

Memory
LPDDR5X-7467, 4*SDRAM, up to 64GB
Storage
1*M.2 M-Key 2280, PCIe4.0 x4
Expansion

1*MXM Slot, PCIe 4.0 x8, Support Intel® Arc™ B570 Graphic Card

1*M.2 E-Key 2230, PCIe x1 + USB2.0, support WiFi+BT

1*M.2 E-Key 3042/3052, USB3.0 + USB2.0, support 5G/4G module

1*Nano SIM

BIOS
AMI UEFI BIOS
OS Windows 10/11 64bit, Linux

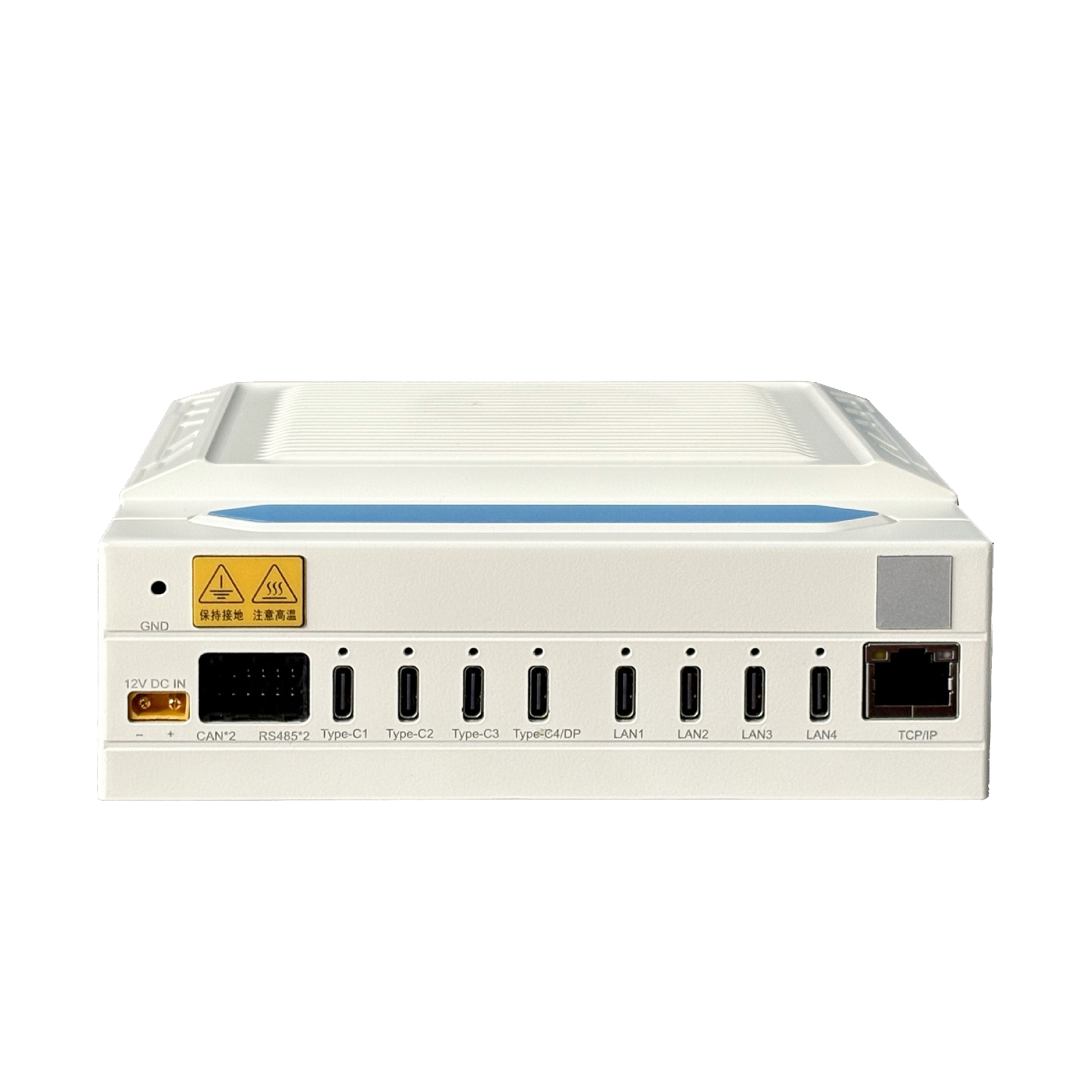

I/O
Ethernet

4*Intel® I210-AT NICs with EtherCAT Protocol, Type-C

1*Intel® GbE Controller, RJ45

Serial
2*RS485, 2*RS232
USB
4*USB3.0 Type-C
GMSL Expansion Card

4*GMSL, support Quad Channel GMSL Camera

GPIO Expansion Card

6*GPI, 6*GPO, 2*tGPIO,

1*TTL(12V+5V+3.3V)

Power Expansion Card

48V to 12V, 200W

Mechanical & Environment
Dimension

MAX: 150*142*78mm

MIN: 150*142*53mm

Power Input
1*DC 12±5%, 2P XT30PW-M
Temperature Operation: 0℃~60℃, Storage: -20℃~75℃
Relative Humidity
5%~95%, non-condensing
