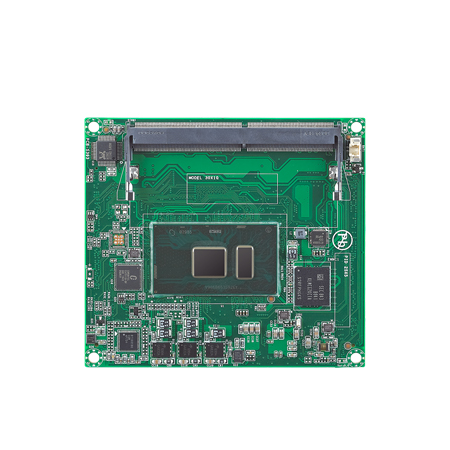

Intel Whiskey Lake-U Core i5-8265U CPU, 6*COM, 12*USB, 2*LAN, SCM (Seavo Compute Module)
|
General |
|
|
CPU |
Intel® 8th Core™ i5-8265U, Quad-core, up to 3.9 GHz,TDP15W |
|
Chipset |
Null |
|
Memory |
DDR4-2400, 1*SO-DIMM, up to 16 GB |
|
Storage |
1*eMMC 8/16/32G |
|
BIOS |
AMI UEFI BIOS |
|
System |
Windows7/8/10, Linux |
|
I/O |
|
|
Serial Port |
6*RS232 |
|
USB 2.0 |
8*USB 2.0 |
| Ethernet |
2*Intel® 1Gbps PCIe Ethernet Controller |
|
Audio |
1*Realtek® 5.1 channel HDA Codec |
| HighSpeed Signal |
4*USB 3.0, 5*PCI, 1*SATA 2*HSIOA(USB 3.0/PCIe), 2* HSIOB(SATA/PCIe) |
|
GPIO |
8 programmable GPIO |
|
Feature Interface |
LPC, SM BUS, I2C, USB OC, FAN, Power Control, Power OK |
|
Display |
|
|
Display Interface |
1*eDP/LVDS 1*VGA/DDI1 1*DDI2 (DDI can be set to DP/HDMI/DVI) |
|
Multiple Display |
|
|
Mechanical & Environment |
|
|
Dimension |
85*95mm |
|
Power Input |
5V |
| Temperature |
Operation: 0℃~60℃, Storage: -25℃~75℃ |
|
Relative Humidity |
Operation: 10%~90%, Storage: 5%~95%, non-condensing |
