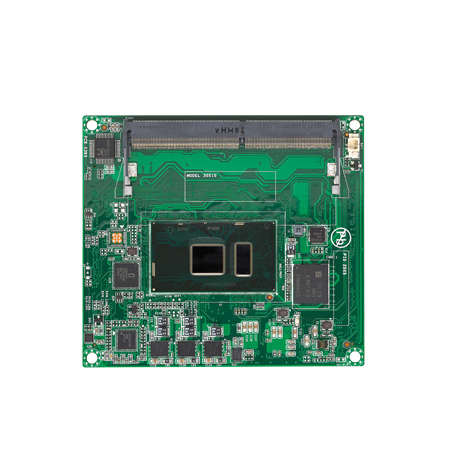

SCM-CA6201

CPU Module, Intel Core i5-6200U or 6/7th Core/ Celeron CPU, DDR4 Memory

SCM (Seavo Compute Module)
Intel Core i5-6200U or 6/7th Core/ Celeron CPU
Supports DDR4 Memory, provides 2*Intel GbE, optional eMMC
Provides rich resources of I/O and Displays through B2B connectors
Fast to develop Carrier Board, flexible to select SCM CPU Module
85*95mm
Specification
General
CPU

Intel® 6th CoreTM i5-6200U,Dual-core, up to 2.8 GHz, TDP 15W

CPU can be customized into Intel® 6th/7th CoreTM i3/i5/i7

or Celeron® 3855U/ 3955U
Memory
DDR4-2133, 1*SO-DIMM, up to 16 GB
Storage
1*eMMC 8/16/32G (Optional)
BIOS
AMI UEFI BIOS
System
Windows 7/8.1/10, Linux
I/O
Ethernet
2*Intel® 1Gbps PCIe Ethernet Controller
Audio
1*Realtek® ALC662 5.1 channel HDA Codec
High Speed Signal

4*USB 3.0, 5*PCIe, 1*SATA 3.0

2*HSIOA (USB 3.0/ PCIe),

2*HSIOB (SATA/ PCIe)

USB 2.0
8*USB 2.0

Serial

6*TTL

GPIO
8*Programmable GPIO
Others
1*LPC, 1*SM BUS, 1*I2C, 2*USB OC,
1*FAN Control, 1*Power Control, Power OK
Display
Display

1*eDP/LVDS, 1*VGA/ DDI1, 1*DDI2

DDI can be set to DP/HDMI/DVI

Multiple Display
Triple
Mechanical & Environment
Dimension
85*95mm
Power Input
5V
Temperature Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity
Operation: 10%~90%, Storage: 5%~95%, non-condensing
Variants
