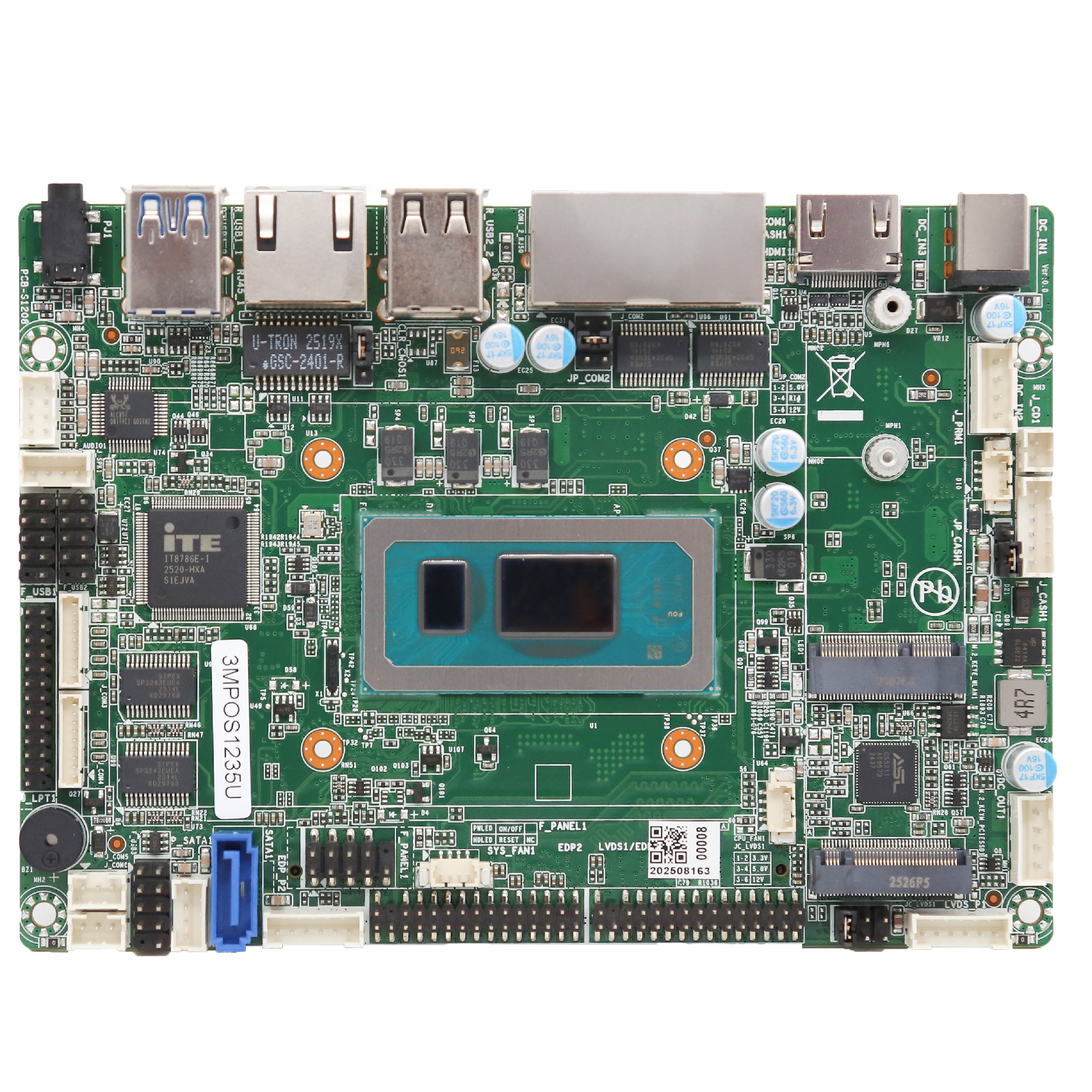

采用Intel Alder Lake 系列i3-1235U处理器, 2*USB3.0, 7*USB2.0, 1*SATA3.0, 1*千兆网口, 6*COM
|
General |
|
|
CPU |
Intel® Alder Lake Series Processors, i3-1235U |
|
Memory |
DDR5-4800, 1*SO-DIMM, up to 32GB |
|
Storage |
1*SATA 3.0 1*M.2 (M-Key 2280, NVME/SATA SSD) |
|
Expansion |
1*M.2 (E-Key 2230, PCle + USB2.0) |
|
BIOS |
AMI UEFI BIOS |
| OS |
Windows 10/11 64bit, Linux |
|
I/O |
|
|
Ethernet |
1*Intel GbE LAN |
|
Serial |
6*RS232 |
|
USB |
2*USB 3.2 Gen1, 7*USB 2.0 |
|
Audio |
Realtek HDA codec, with 1*Line-Out + MIC and 1*Amplifier |
|
Others |
1*LPT, 1*Cash Drawer |
|
Display |
|
|
Display Interface |
1*HDMI, 1*eDP, 1*LVDS |
|
Multiple Display |
Triple |
|
Mechanical & Environment |
|
|
Dimension |
146*105mm |
|
Power Input |
DC 12V Power Input |
| Temperature |
Operation: 0℃~60℃, Storage: -20℃~75℃ |
|
Relative Humidity |
5%~95%, non-condensing |
