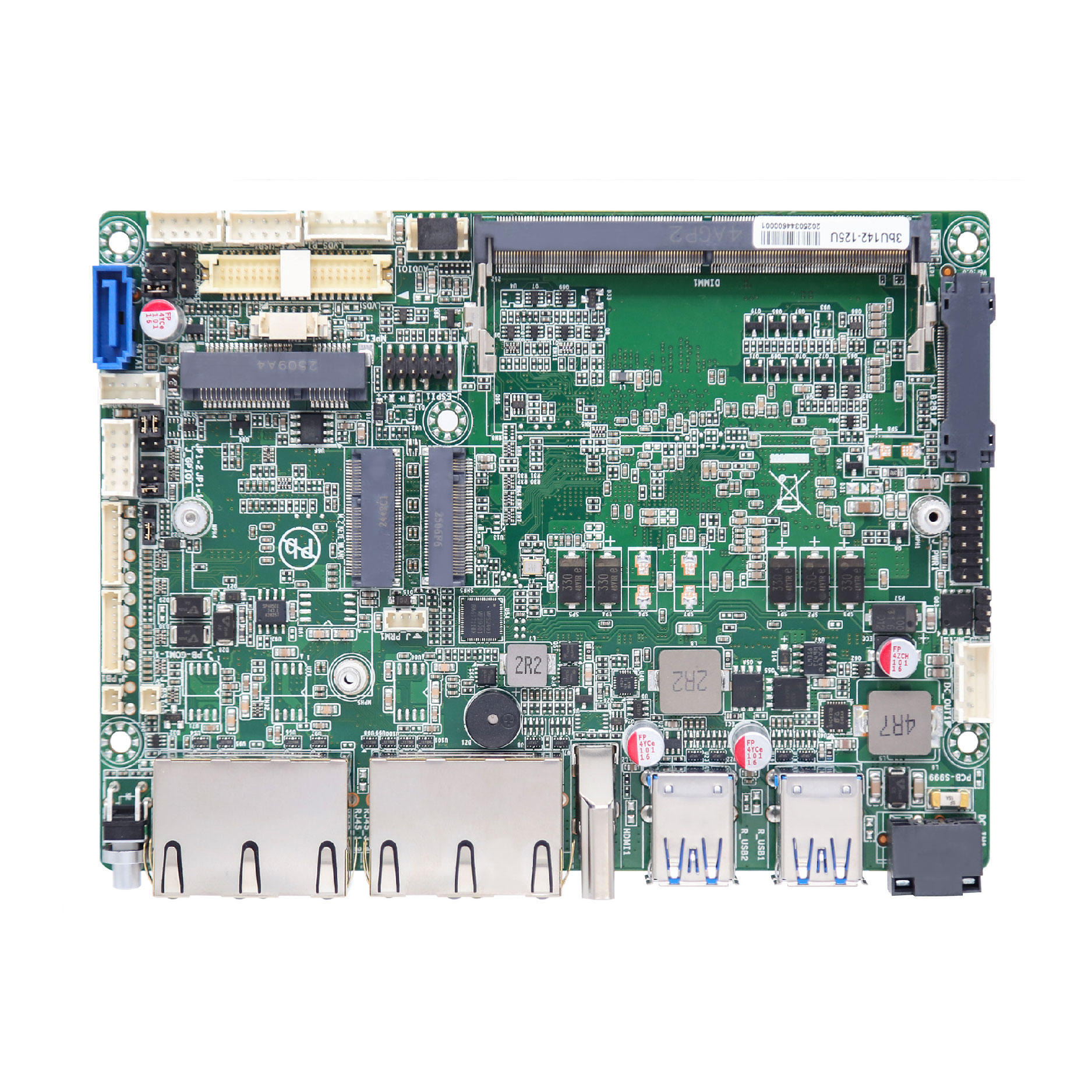

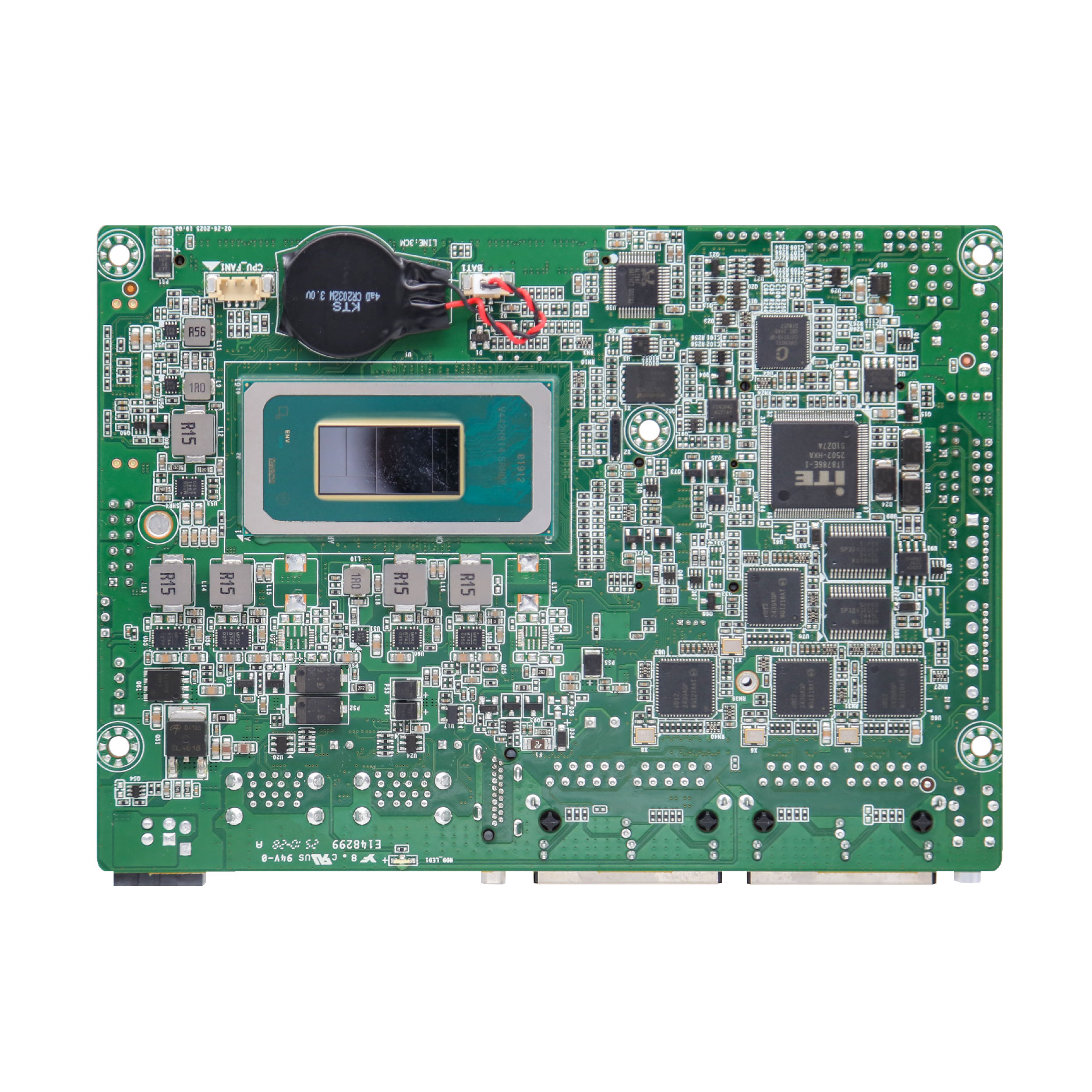

Intel Core Ultra处理器 (Series 1), Meteor Lake-U/H, 4*LAN, 8*USB, 2*COM, 2*M.2, 3.5寸
|
General |
|
|
CPU |
Intel® CoreTM Ultra Processors (Series 1), Meteor Lake-U/H |
|
Memory |
DDR5-5600, 1*SO-DIMM, up to 32GB |
|
Storage |
1*SATA 3.0 1*M.2(Key M, 2280, PCIe x4/ SATA) |
|
Expansion |
1*M.2 (Key E, 2230, PCIe x1+USB 2.0, WiFi+BT) 1*SIM, 1*Mini-PCIe (PCIe X1+USB 2.0) , 1*Expansion IO |
|
BIOS |
AMI UEFI BIOS |
| OS | Windows 10/11 64bit, Linux |
|

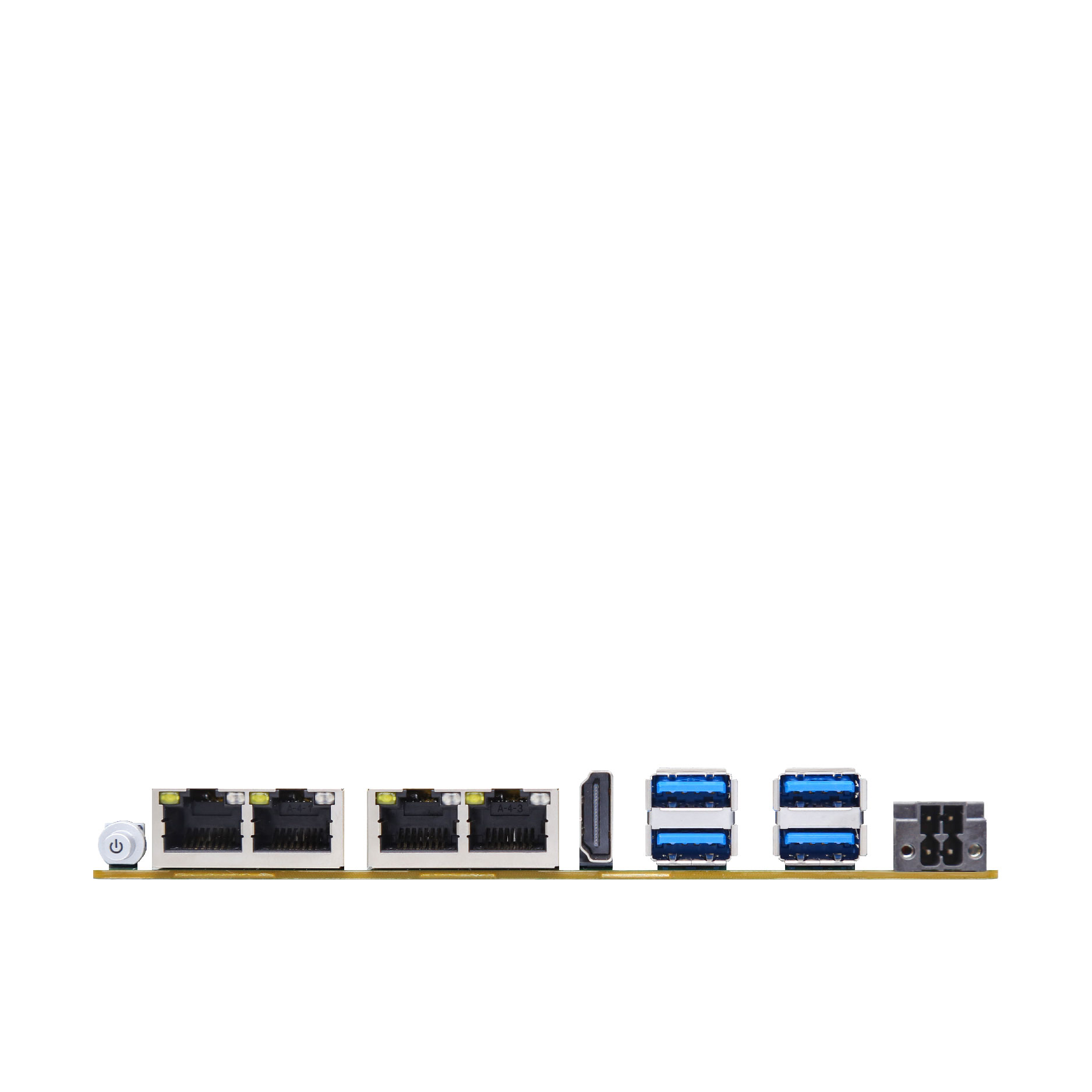

I/O |
|
|
Ethernet |
4*Intel® GbE Controller, RJ45 |
|
Serial |
2*RS232/ RS485 |
|
USB |
4*USB 3.2 Gen 1, 4*USB 2.0 |
|
Audio |
Realtek® HDA codec, with Line-out+MIC |
|
GPIO |
8*GPIO |
| Others | 1*CMOS Clear |
|
Display |
|
|
Display Interface |
1*HDMI, 1*eDP/LVDS |
|
Multiple Display |
Dual |
|
Mechanical & Environment |
|
|
Dimension |
146*105mm |
|
Power Input |
DC 12V/19V/24V |
| Temperature |
Operation: 0℃~60℃, Storage: -25℃~75℃ |
|
Relative Humidity |
5%~95%, non-condensing |
