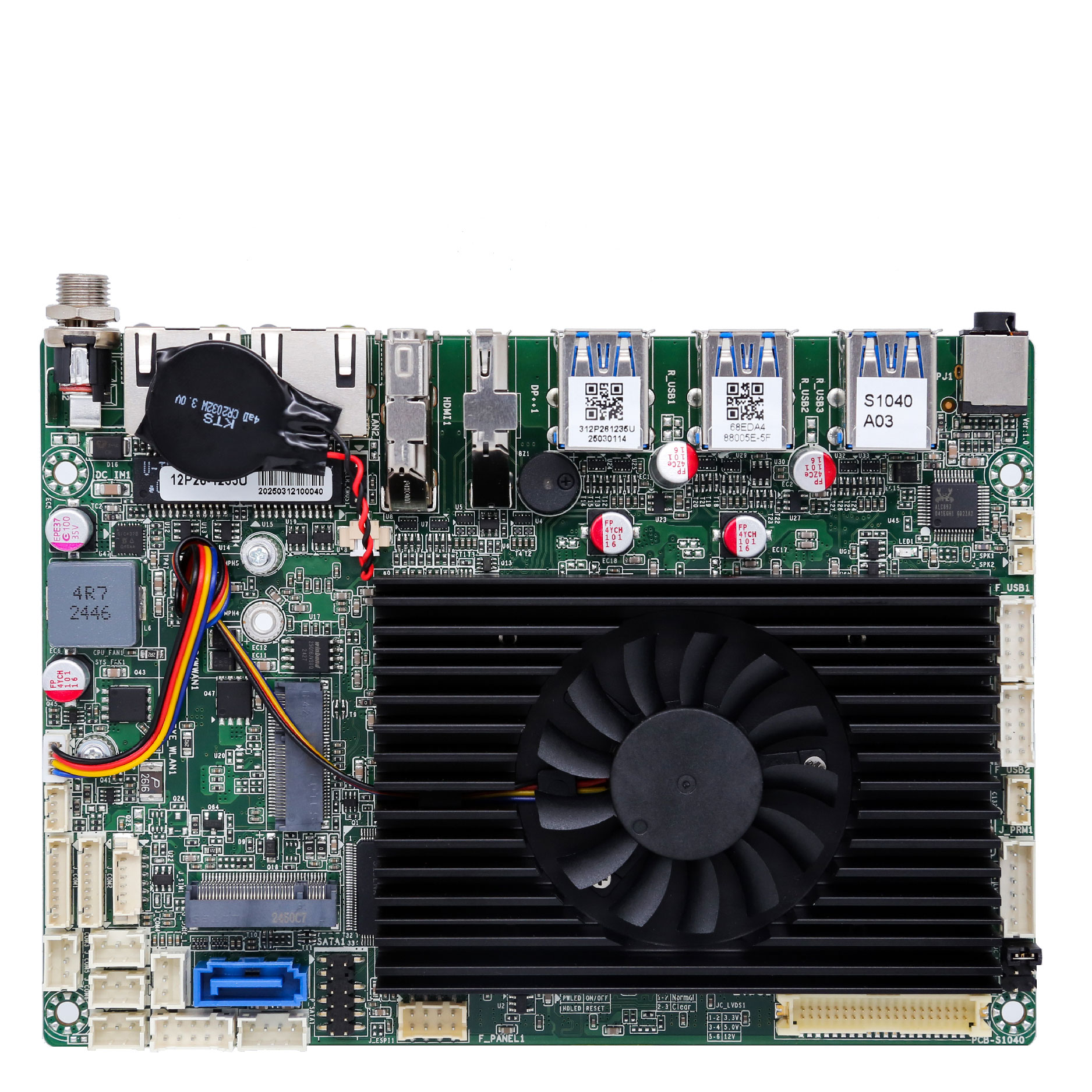

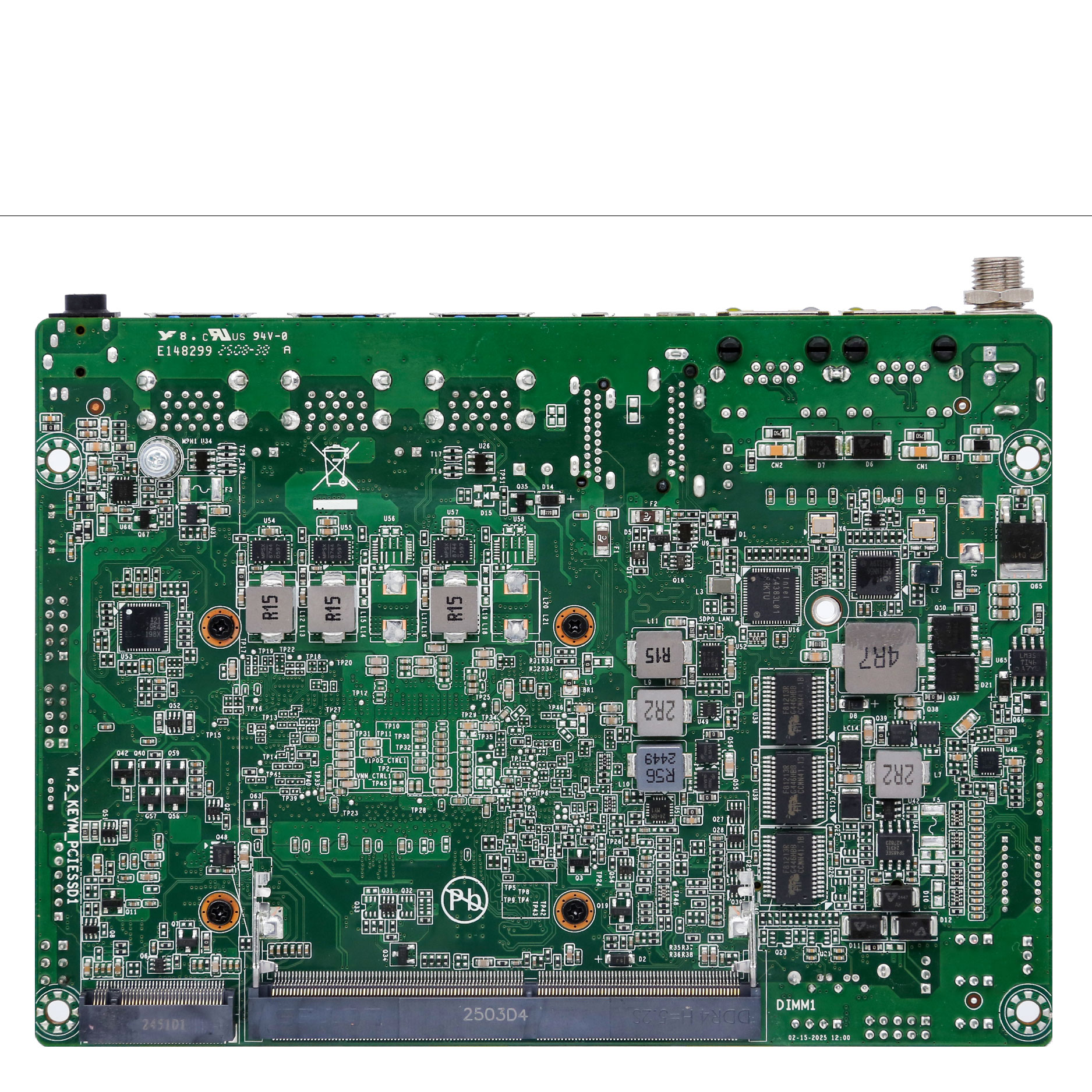

第12/13代 Intel Core Alder Lake-U处理器，9*USB, 2*LAN, 6*COM, 2*M.2, 3.5寸
|
General |
|
|
CPU |
Intel® CoreTM Alder Lake-U Processor |
|
Memory |
DDR4-3200, 1*SO-DIMM, up to 32 GB |
|
Storage |
1*SATA 3.0, 1*M.2 (Key-M, 2280, PCIe x4 NVMe/SATA, SSD) |
|
Expansion |
1*M.2(Key-E 2230, PCIe x1+USB2.0, WIFI),
1*M.2(Key-B 2242/3042/3052, PCIe x1+USB3.0+USB2.0, NVMe/5G/4G), 1*SIM Card
|
|
BIOS |
AMI UEFI BIOS
|
| OS |
Windows 10/11 64bit, Linux
|
|

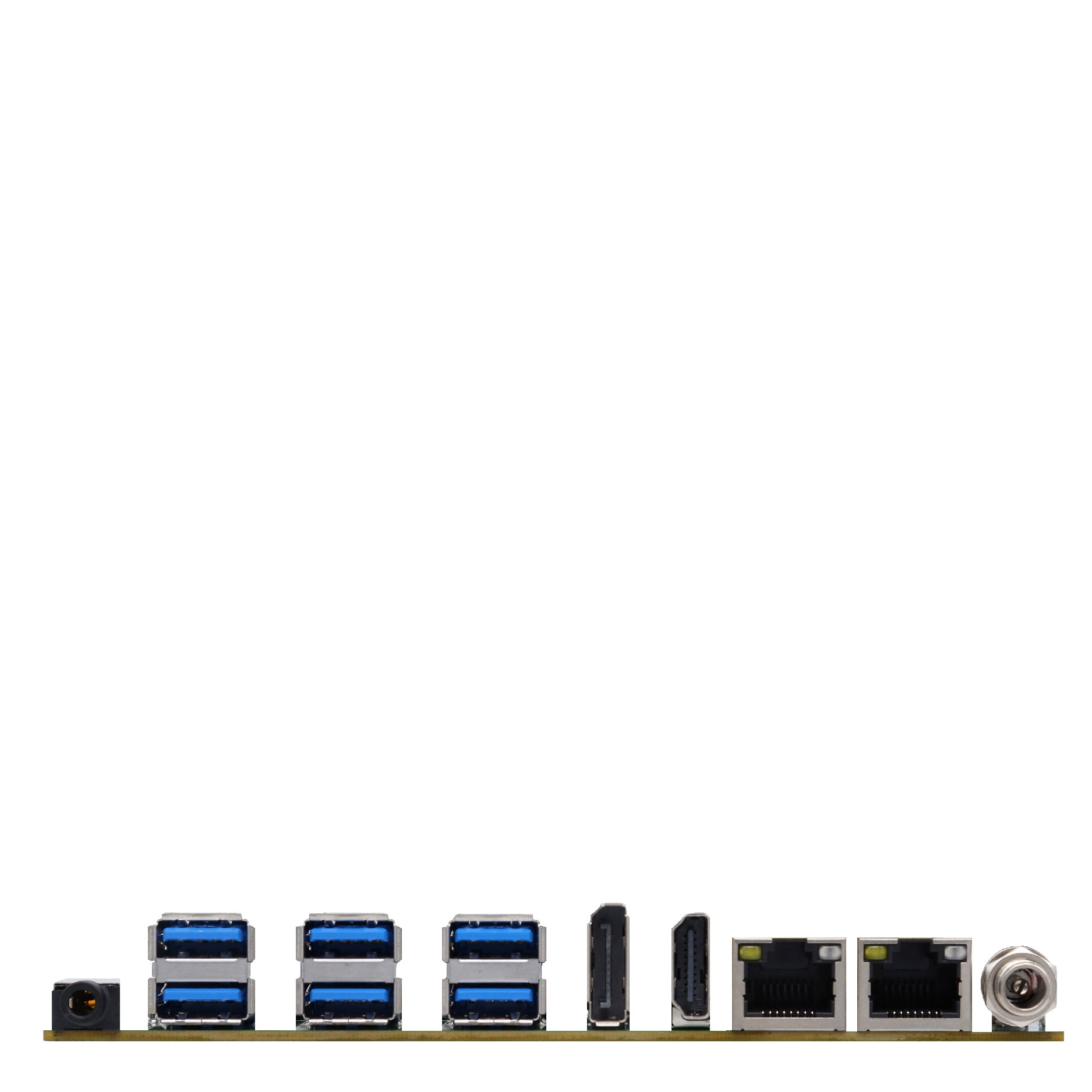

I/O |
|
|
Ethernet |
2*Intel® GbE Controller, RJ45
|
|
Serial |
2*RS232, 3*RS232/TTL, 1*RS232/RS485/TTL
|
|
USB |
6*USB 3.2 Gen1, 3*USB 2.0
|
|
Audio |
Realtek®HDA Codec, with MIC+Line-out and Amplifier
|
|
GPIO |
8*Programmable GPIO
|
|
Display |
|
|
Display Interface |
1*HDMI, 1*DP, 1*eDP/LVDS |
|
Multiple Display |
Triple |
|
Mechanical & Environment |
|
|
Dimension |
146*105mm |
|
Power Input |
DC 12V/24V
|
| Temperature |
Operation: 0℃~60℃, Storage: -25℃~75℃ |
|
Relative Humidity |
5%~95%, non-condensing |
