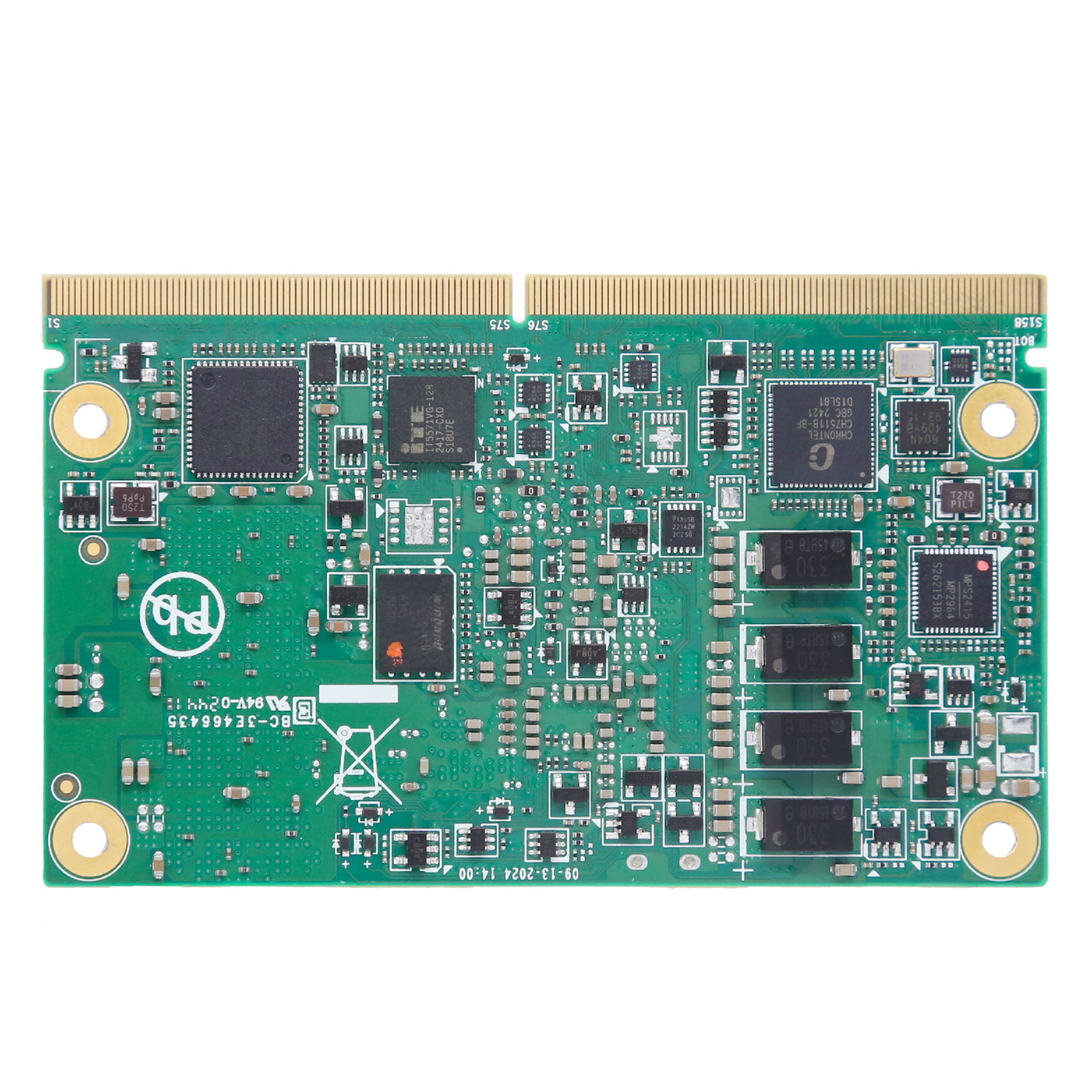

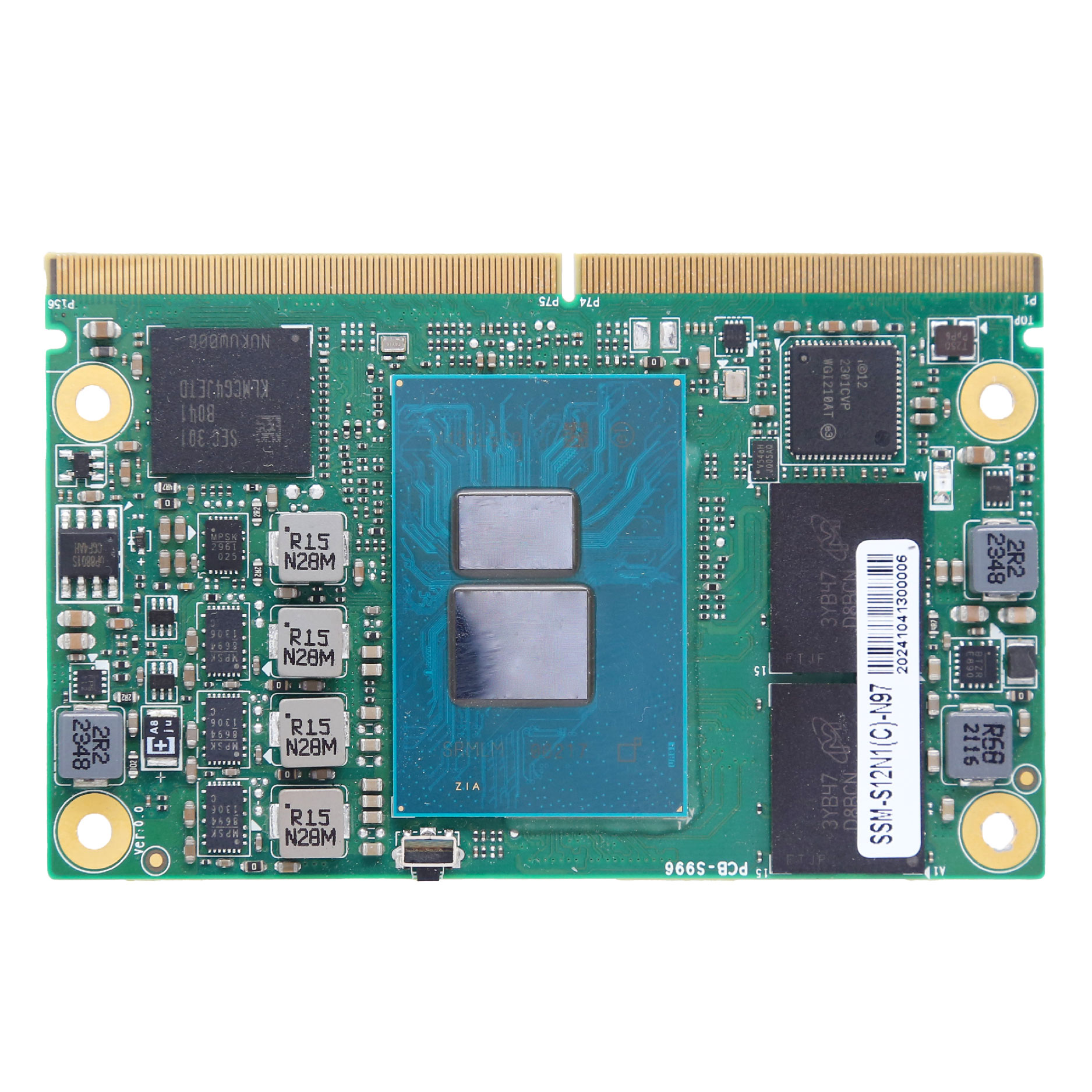

SMARC V2.1 82x50mm 标准核心模块，采用Intel Core Alder Lake-N系列处理器
|
General |
|
|
CPU |
Intel®CoreTMAlder Lake-N Processors, N97
|
|
Memory |
Support LPDDR5 4800MT/s, up to 16GB
|
|
Storage |
eMMC 16GB/32GB/64GB/128GB
|
|
BIOS |
AMI UEFI BIOS
|
| OS |
Windows 10/11 64bit, Linux Kernal 5.4
|
|
I/O |
|
|
Ethernet |
2*Intel®GbE Controller
|
|
High Speed Signal |
2*USB 3.2 Gen1, 1*SATA 3.0
4*PCIe x1
|
|
Serial |
4*UART |
|
USB |
5*USB2.0 |
|
GPIO |
10*Programmable GPIO
|
|
Others |
1*SMBus, 1*I2C
|
|
Display |
|
|
Display Interface |
1*eDP/LVDS/MINI-DSI, 1 *DP, 1 *DP/HDMI
2 * MIPI-CSI
|
|
Multiple Display |
/ |
|
Mechanical & Environment |
|
|
Dimension |
82*50mm
|
|
Power Input |
DC 5V |
| Temperature |
Operation: 0℃~60℃, Storage: -25℃~75℃ |
|
Relative Humidity |
5%~95%, non-condensing |
