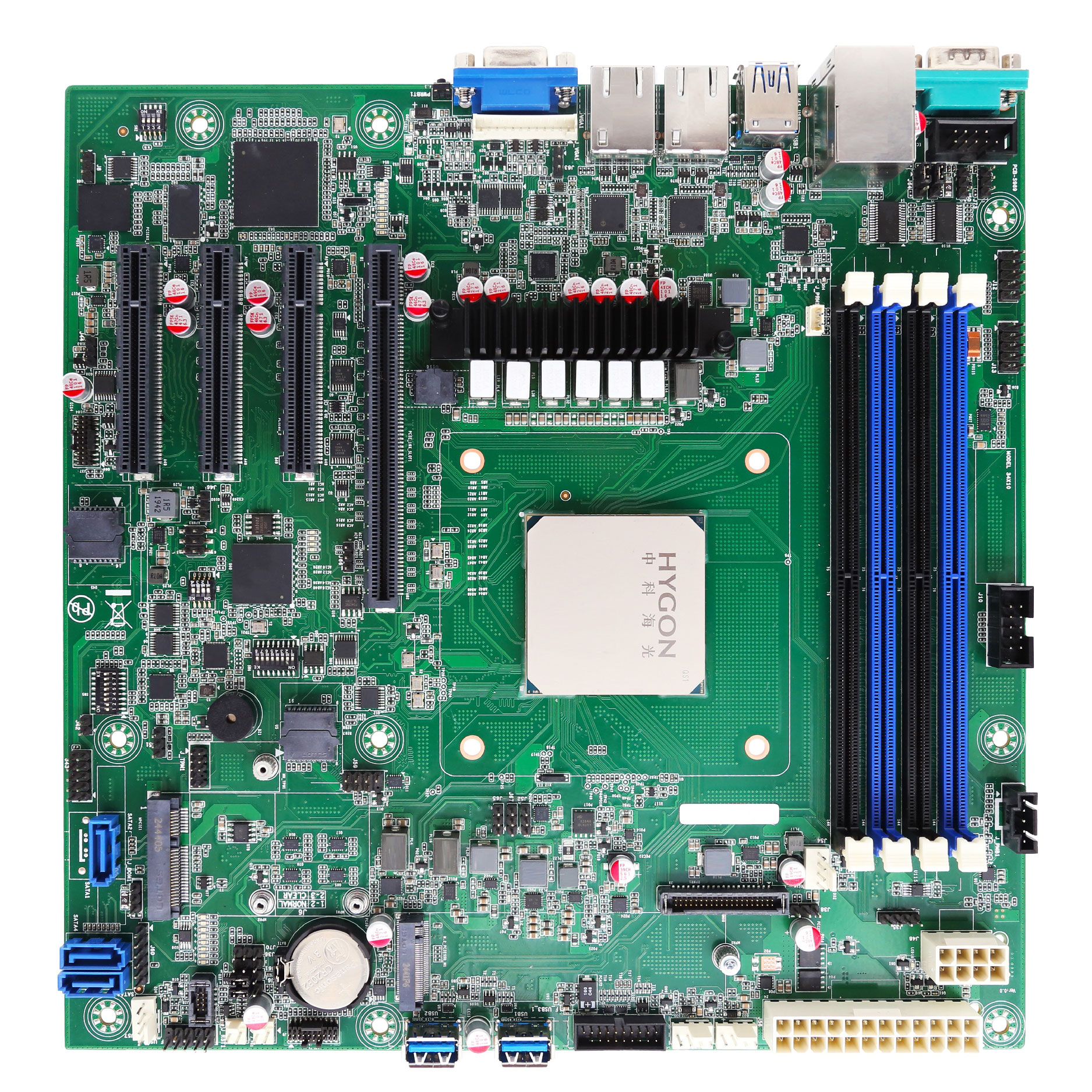

采用海光3400系列处理器, 支持ASPEED 2600 BMC&IPMI2.0, 支持DDR5内存, 2*千兆网口
|
General |
|
|
CPU |
HYGON®C86-4G Series Processor with 3490
16-Core, Support MAX CPU TDP: 135W
|
|
BMC |
AST2600 BMC, Support IPMI 2.0
|
|
Memory |
DDR5-5200, 4*ECC U-DIMM, up to 256GB
|
|
Storage |
3*SATA 3.0, 1*M.2 (M-Key 2280, PCIe4.0 x4 /SATA, SATA 3.0)
|
|
Expansion Interface |
1*Mini-PCIe (PCIe+USB2.0, WiFi+ Bluetooth)
2*PCIe x8, 2*PCIe x4
|
| OS |
Windows 10/11 64bit, Linux, Kylin
|
|

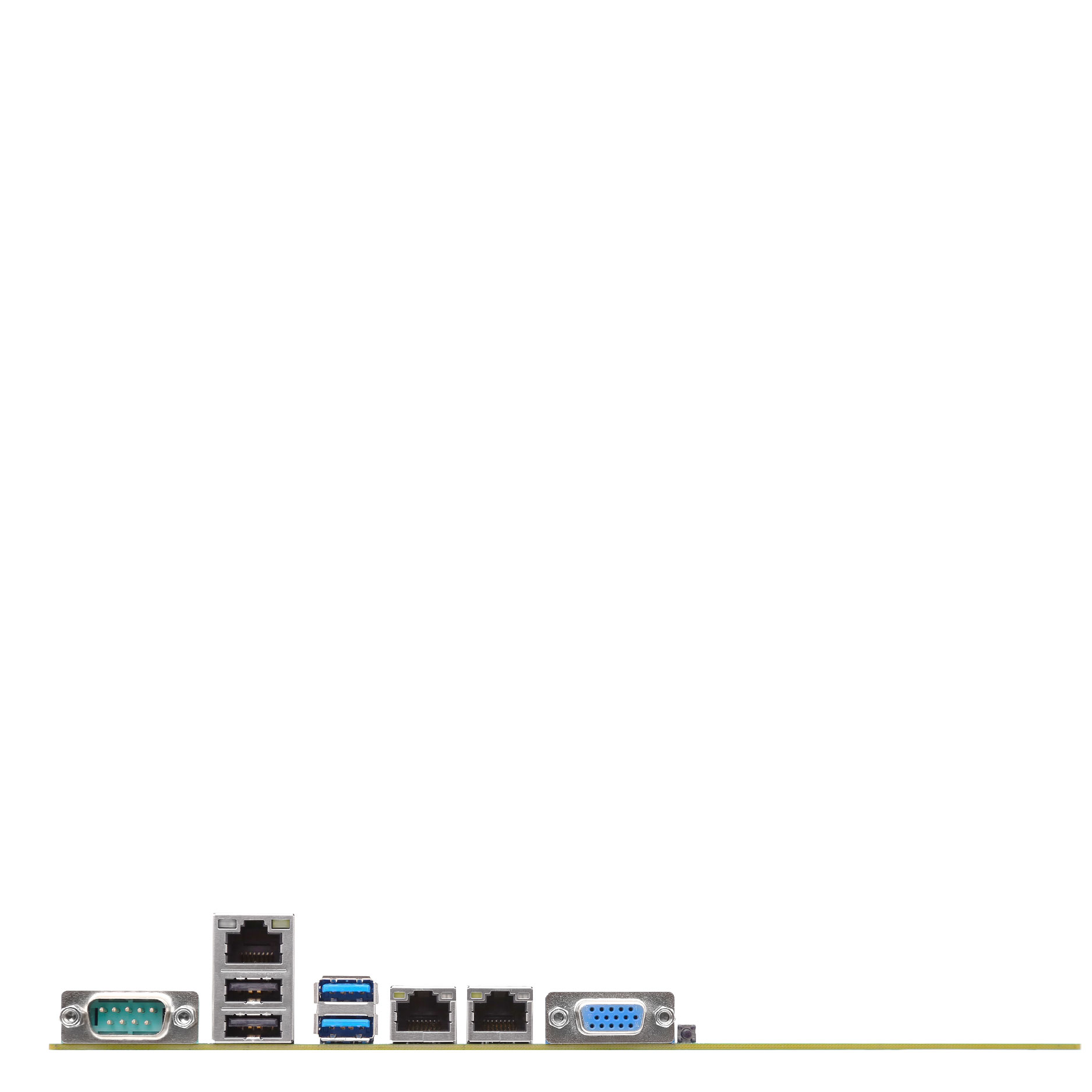

I/O |
|
|
Ethernet |
1*Realtek®GbE Controller, RJ45
2*Intel®GbE Controller, RJ45 |
|
Serial |
2*RS232
|
|
USB |
6*USB 3.2 Gen1, 4*USB2.0
|
|
Others |
1*SMBus
|
|
Display |
|
|
Display Interface |
1*VGA: max 1920*1200@60Hz
|
|
Multiple Display |
Single |
|
Mechanical & Environment |
|
|
Dimension |
243.8*243.8mm
|
|
Power Input |
ATX PSU |
| Temperature |
Operation: 0℃~60℃, Storage: -25℃~75℃ |
|
Relative Humidity |
5%~95%, non-condensing |
