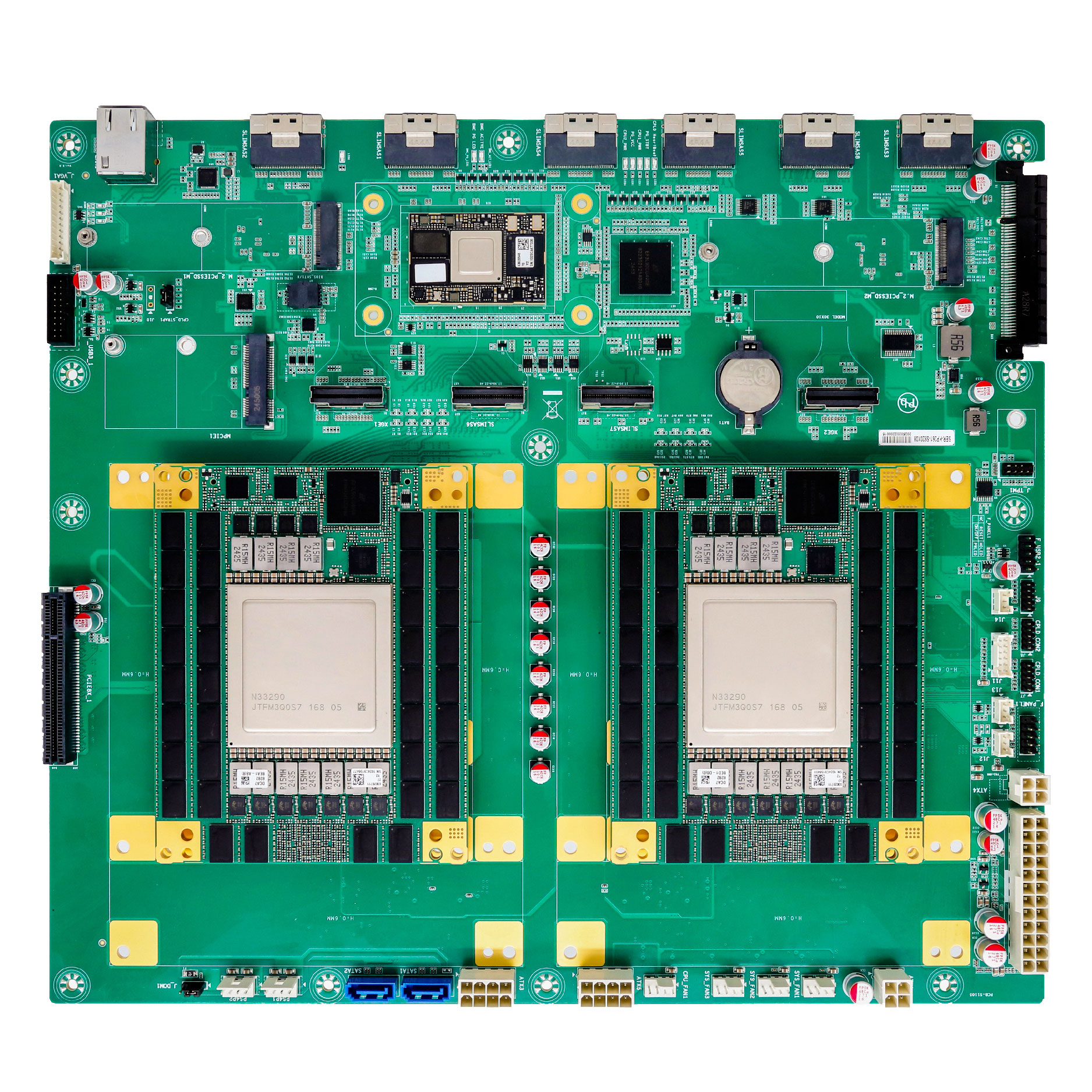

采用鲲鹏KP920S/KP920 CPU模组, 8*SLIMSAS (1*PCIe8X/2*PCIe4X), 2*SLIMSAS (XGE signal)
|
General |
|
|
CPU |
鲲鹏 KP920S/KP920 模组
|
|
BMC |
Hi1171模组 |
|
Storage |
2*SATA 3.0, up to 2*M.2 (M-Key 2280, PCIe x4/NVMe) |
|
Expansion Interface |
1*Mini-PCIe, 1*PCIe x8 slot (2*USB 3.2 Gen1+SGMII BMC+PCIe2X+UART)
8*SLIMSAS 8i (1*PCIe x8/2*PCIe x4)
2*SLIMSAS 8i (XGE signal)
|
|
I/O |
|
|
Ethernet |
1*Motorcomm®YT8521-SC GbE Controller, RJ45
|
|
USB |
1*USB 3.2 Gen1, 2*USB2.0
|
|
Others |
Support TPM2.0 module, 2*I2C, 1*NCSI
|
|
Display |
|
|
Display Interface |
1*VGA, max 1920*1080@60Hz
|
|
Multiple Display |
Single |
|
Mechanical & Environment |
|
|
Dimension |
330*294mm
|
|
Power Input |
ATX PSU |
| Temperature |
Operation: 0℃~60℃, Storage: -25℃~75℃ |
|
Relative Humidity |
5%~95%, non-condensing |
