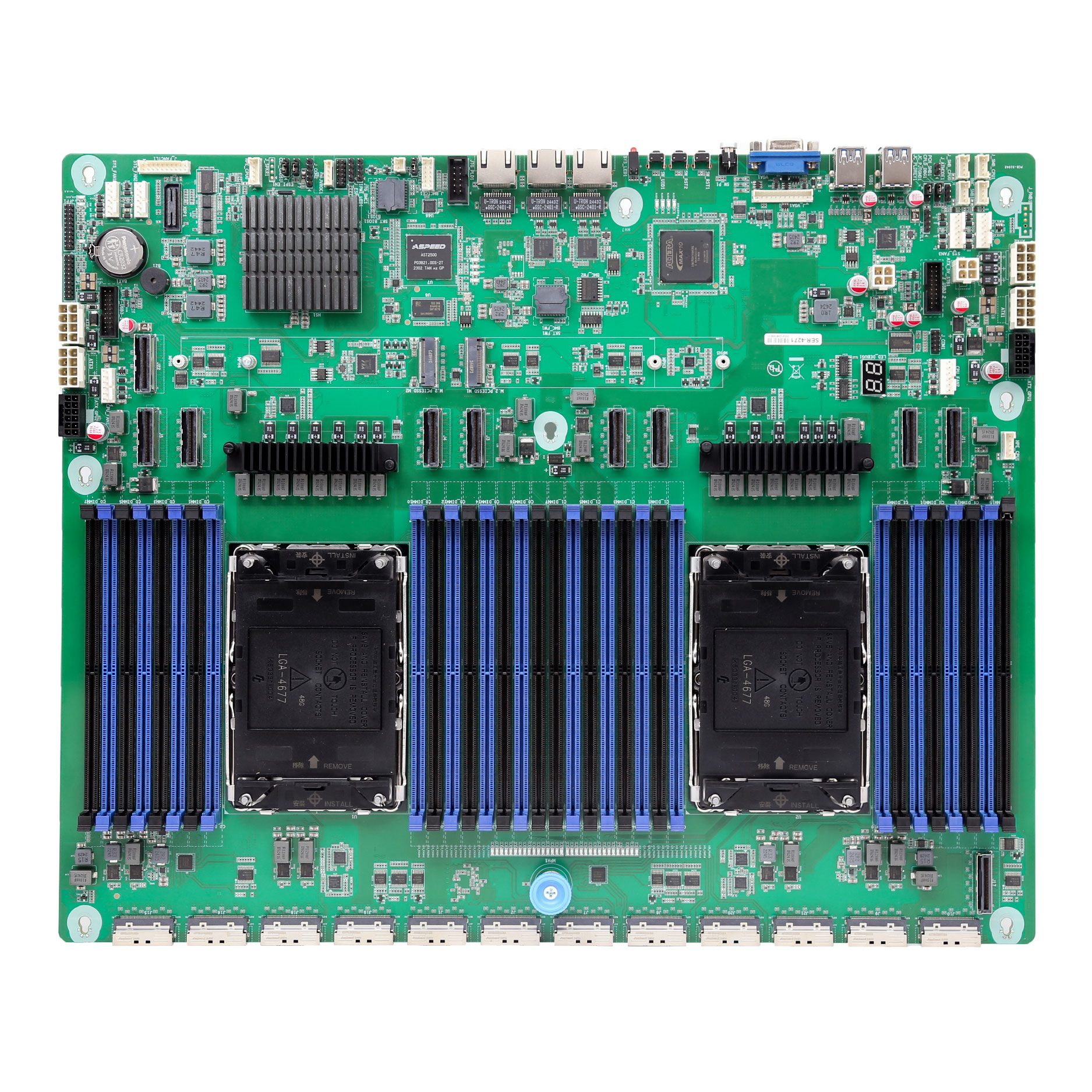

支持双路Intel第4/5代至强处理器，C741芯片，32*DDR5-4800 RDIMM，22*MCIO 8i (PCIe5.0 x8)
|
General |
|
|
CPU |
4th/5th Gen Intel®Xeon®Scalable Processors, Dual Socket LGA-4677 (Socket E)
each Processors supports Intel®Ultra Path Interconnect (UPI) of up to 16 GT/s
|
|
Chipset |
Intel®C741 Chipset, TDP 11W
|
| BMC |
ASPEED AST2500 BMC, Support IPMI 2.0
|
|
Memory |
DDR5-4800, 32*ECC RDIMM, up to 8TB
|
|
Storage |
1*M.2 (M-Key 2280, PCIe3.0 x2, NVMe)
1*M.2 (M-Key 2280, PCIe3.0 x4, NVMe)
|
|
Expansion |
22*MCIO 8i (PCIe5.0 x8)
|
|
BIOS |
AMI UEFI BIOS
|
| OS |
Windows Server 2022, Ubuntu 22.04
|
| TPM |
TPM2.0 onboard
|
|

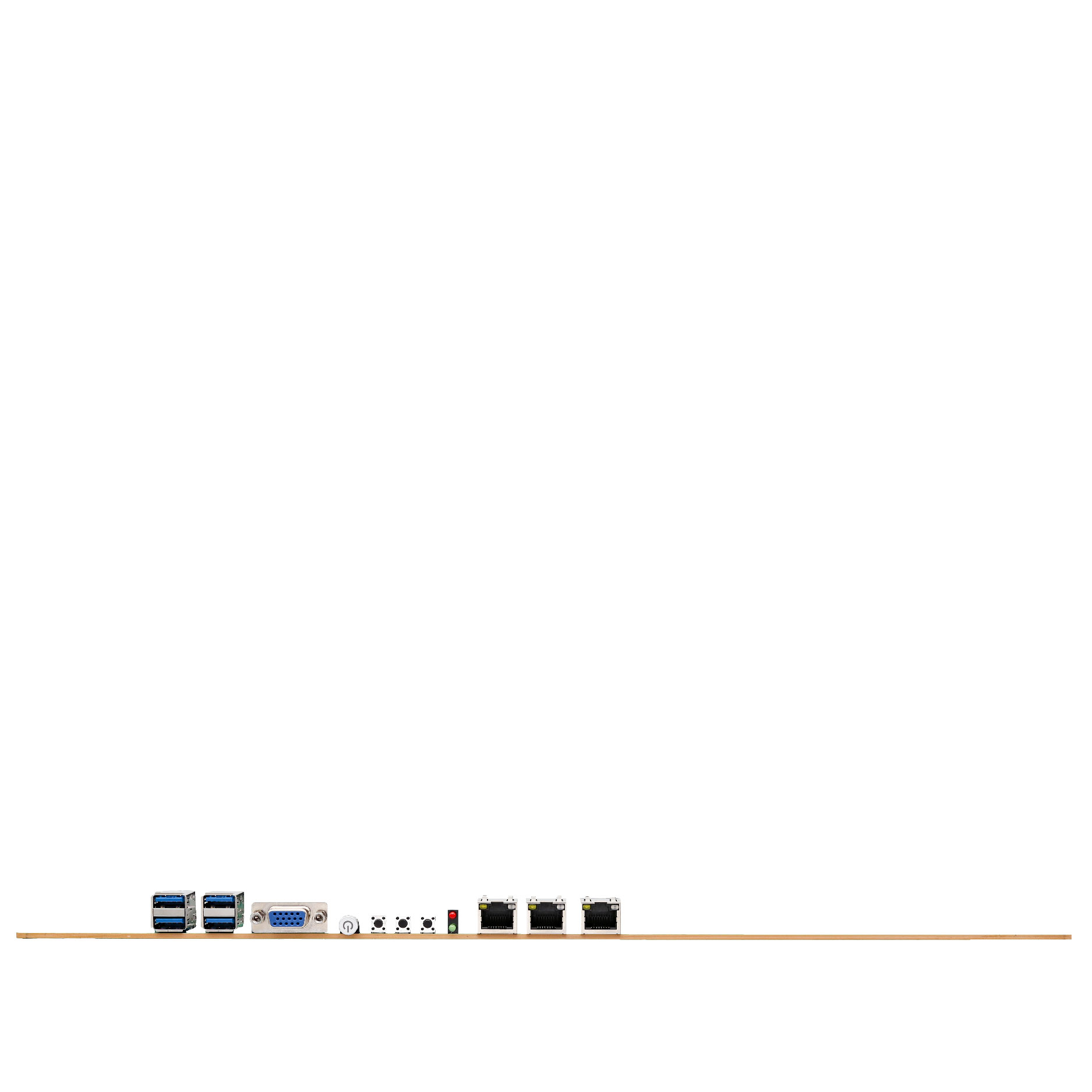

I/O |
|
|
Ethernet |
2*Intel®GbE Controller, RJ45
1*Realtek GbE Dedicated IPMI LAN Port
|
|
Serial |
2*RS232
|
|
USB |
8*USB 3.2 Gen1
|
|
Display |
|
|
Display Interface |
1*VGA: max 1920*1200@60Hz
|
|
Mechanical & Environment |
|
|
Dimension |
428*350mm
|
|
Power Input |
4*DC 12V ATX 8P, 1*5V Standby ATX 4P
|
| Temperature |
Operation: 0℃~60℃, Storage: -25℃~75℃ |
|
Relative Humidity |
5%~95%, non-condensing |
