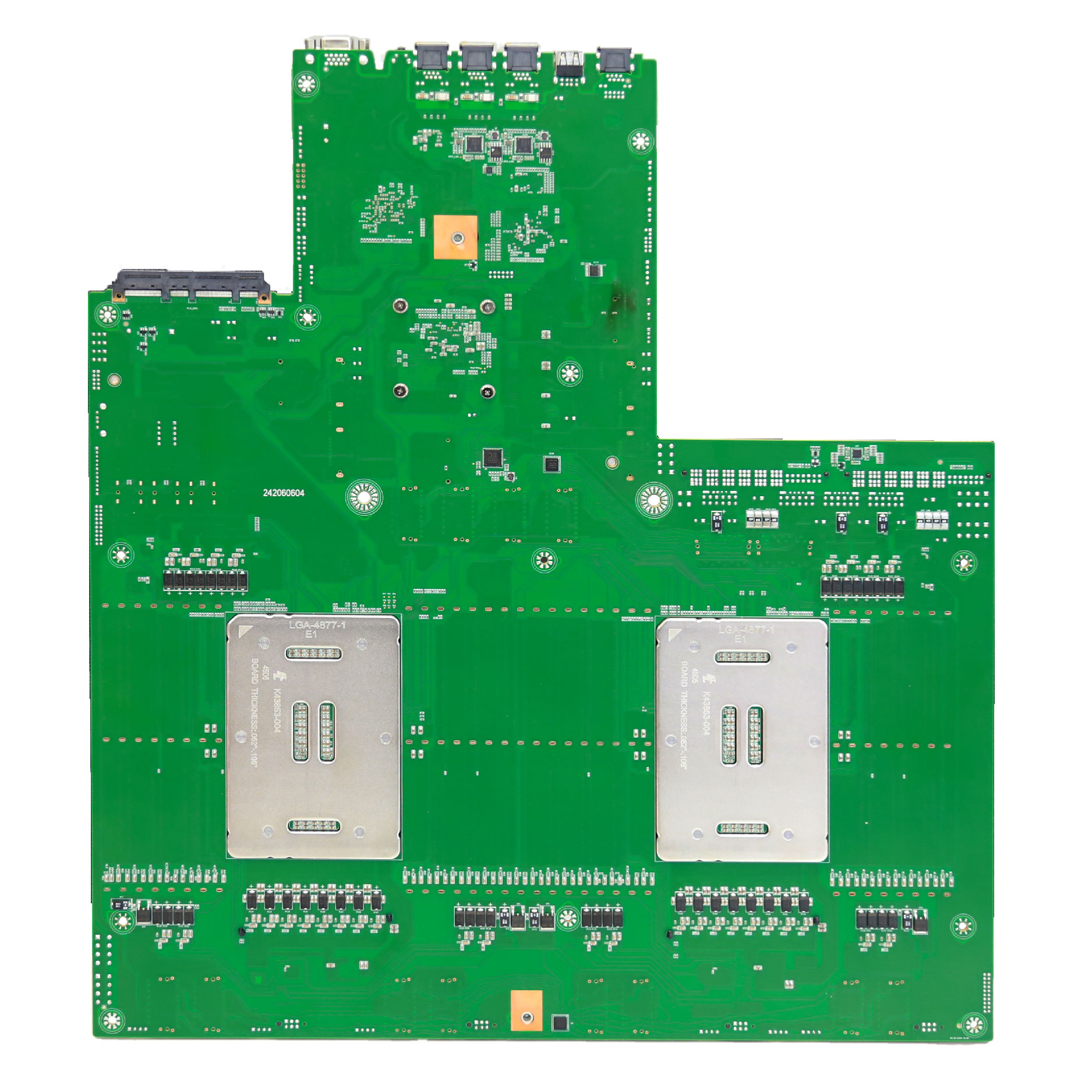

支持双路Intel第4/5代至强处理器，C741芯片，支持16*MCIO，2*Riser卡插槽，配置冗余电源
|
General |
|
|
CPU |
4th/5th Gen Intel®Xeon®Scalable Processors, Dual Socket LGA-4677 (Socket E)
each Processors supports Inteln®Ultra Path Interconnect (UPI) of up to 16 GT/s
|
|
Chipset |
Intel®C741 Chipset, TDP 11W
|
| BMC |
ASPEED AST2500 BMC, Support IPMI 2.0
|
|
Memory |
DDR5-4800, 32*ECC RDIMM/LRDIMM, up to 8TB
|
|
Storage |
14*MCIO 8i (PCIe5.0 x8), 1*MCIO 8i (8*SATA3.0), 1*MCIO 4i (4*SATA3.0)
2*M.2 (M-Key 2280, PCIe4.0 x2, NVMe)
|
|
Expansion |
1*OCP 3.0
2*Riser Card
|
|
BIOS |
AMI UEFI BIOS
|
| OS |
Windows Server 2019/2022, Linux, Windows10
|
| TPM |
TPM2.0 onboard
|
|

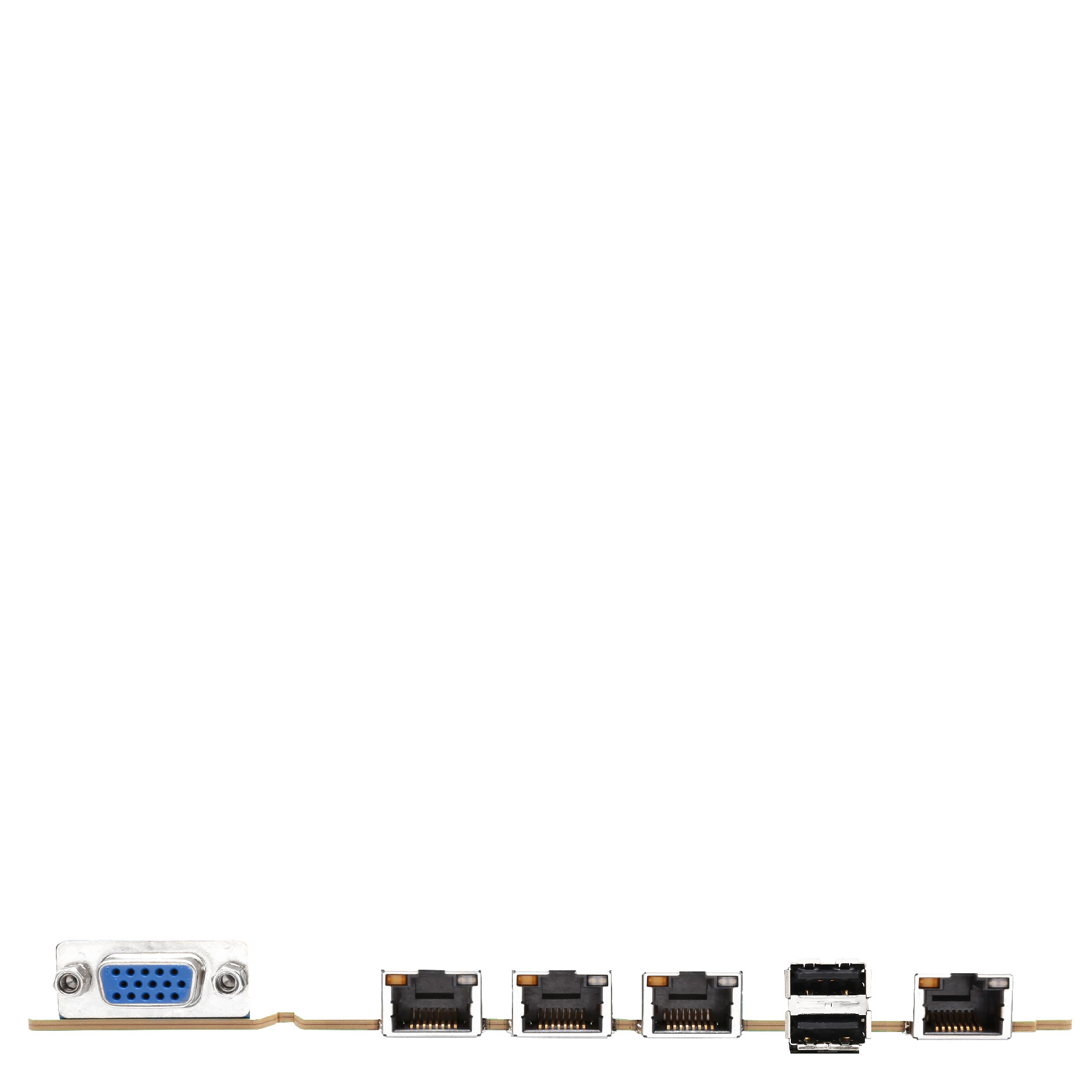

I/O |
|
|
Ethernet |
2*Intel®GbE Controller, RJ45
1*Realtek GbE Dedicated IPMI LAN Port, RJ45
|
|
Serial |
2*RS232
|
|
USB |
4*USB 3.2 Gen1, 3*USB 2.0
|
|
Others |
2*Panel , 10*FAN, 1*Case Open, 1*XDP
|
|
Display |
|
|
Display Interface |
1*VGA: max 1920*1200@60Hz
|
|
Mechanical & Environment |
|
|
Dimension |
479*427.5mm
|
|
Power Input |
2*Power Edgecard, 1+1 Redundant Power Input
|
| Temperature |
Operation: 0℃~45℃, Storage: -20℃~75℃ |
|
Relative Humidity |
Operation: 10%~90%, Storage:5%~95%, non-condensing
|
