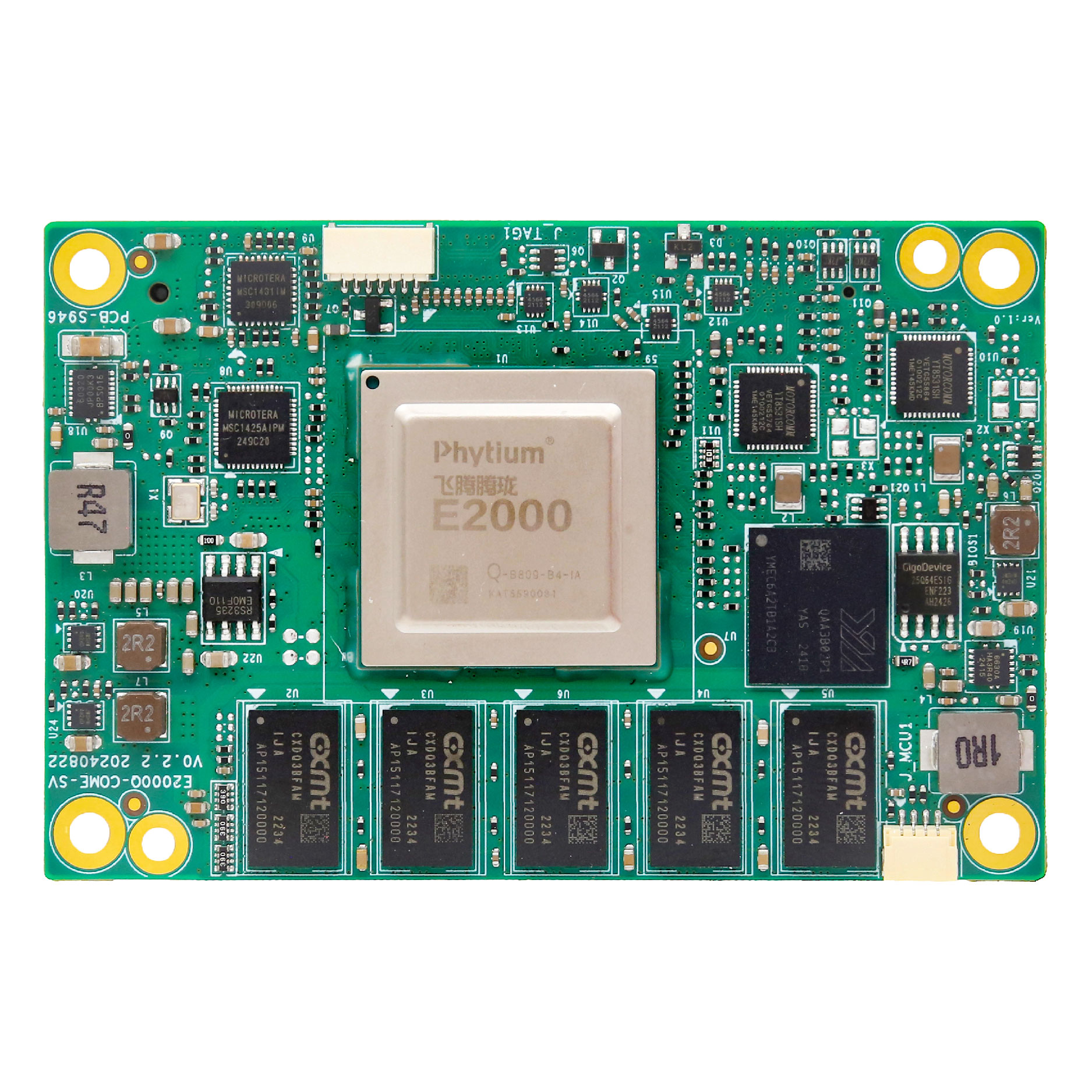

采用国产飞腾E2000Q处理器, 板载4G LPDDR4X内存, 2*板载千兆网卡
|
General |
|
|
CPU |
Phytium® E2000Q Processor, Quad-Core, 2.00/1.50GHz, TDP 11W |
|
Memory |
SDRAM LPDDR4, up to 4GB, on board |
|
Storage |
eMMC 5.1 32GB |
| System | Linux 5.4.18 |
|
I/O |
|
|
Ethernet |
2*Motorcomm® GbE Controller |
|
High Speed Signal |
1*PCIe x4, 1*PCIe x1, 1*SATA 3.0 |
|
Serial |
6*TTL |
|
USB |
1*USB 3.2 Gen1, 5*USB2.0 |
|
GPIO |
14*GPIO |
|
Others |
1*I2C, 1*I2C Touch, 1*SPI |
|
Display |
|
|
Display Interface |
1*DP: max 4096*2160@60Hz |
|
Multiple Display |
/ |
|
Mechanical & Environment |
|
|
Dimension |
84*55mm |
|
Power Input |
DC 12V+5V |
| Temperature |
Operation: 0℃~60℃, Storage: -20℃~75℃ |
|
Relative Humidity |
Operation: 10%~90%, Storage: 5%~95%, non-condensing |
