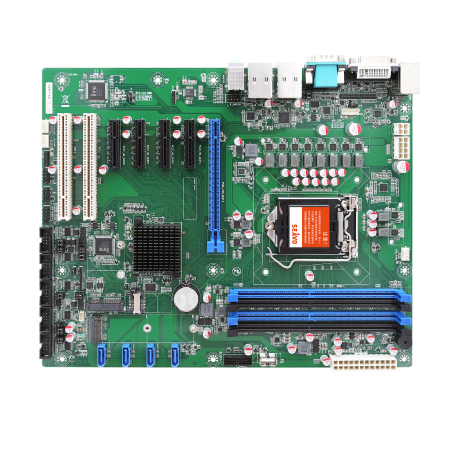

SV4-Q4752

Intel Comet Lake 10代Core i3/i5/i7处理器, Q470芯片, 5*PCIe, 2*PCI, 6*COM, 14*USB, 2*LAN

支持Intel Comet Lake 10代Core i3/i5/i7处理器
采用Intel Q470芯片组
6*COM, 14*USB, 2*Intel千兆网口
1*VGA, 1*HDMI, 1*DVI, 1*eDP, 支持三屏异显
1*PCIe x16, 4*PCIe x4, 2*PCI
支持vPro, AMT, RAID, TPM 2.0
规格
General
CPU
Intel® 10th Generation CoreTM i3/i5/i7, Pentium®, Celeron®  CPU, LGA1200
Chipset
Intel® Q470 Chipset, TDP 6W
Memory
DDR4-2666/2933, 4*U-DIMM, up to 64 GB
Storage

4*SATA 3.0

1*M.2 (Key-M, 2242/2280, PCIe x4/ SATA SSD)

Expansion Interface

1*PCIe x16, 3*PCIe x4,

1*PCIe x4 or 1*PCIe x2 + 1*Mini-PCIe(Wifi/3G/4G Supported),

2*PCI
BIOS
AMI UEFI BIOS
System
Windows 10, Linux

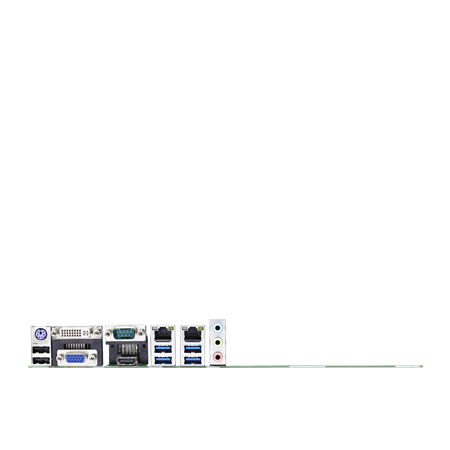

I/O Interface
Ethernet
2*Intel® 1Gbps PCIe Ethernet Controller, RJ45
Serial
4*RS232, 1*RS232/RS485/RS422, 1*RS232/RS485
USB
6*USB 3.0, 8*USB 2.0
Audio
Realtek® ALC662 5.1 channel HDA Codec, with MIC/Line-out/Line-in
PS/2
1*PS/2 Port (Keyboard & Mouse)
GPIO
8*Programmable GPIO
Display
Display Interface

1*DVI-D: max resolution up to 1920*1200@60Hz

1*HDMI 1.4b: max resolution up to 4096*2160@30Hz

1*VGA: max resolution up to 1920*1200@60Hz

1*eDP: max resolution up to 4096*2304@60Hz
Multiple Display
Triple
Mechanical & Environment
Dimension
305*244mm
Power Input
ATX 28P
Temperature Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity
Operation: 10%~90%, Storage: 5%~95%, non-condensing
