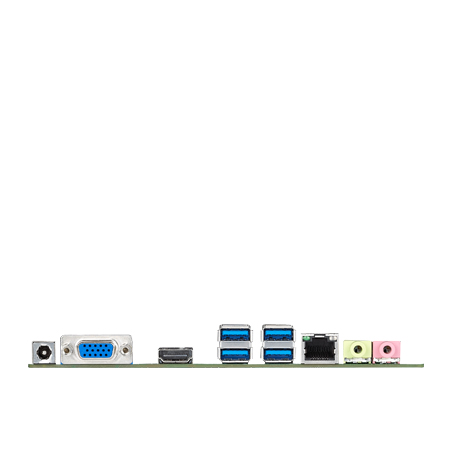

SV1a-40516P

Intel Celeron J4005处理器, 6*COM, 10*USB, 1*LAN, 1*M.2, 1*Mini-PCIe, 薄型Mini-ITX

采用Intel Gemini Lake Celeron J4005处理器
6*COM, 10*USB, 1*千兆网口
1*VGA, 1*HDMI/eDP, 1*LVDS/eDP, 支持三屏异显
提供M.2接口, 板载eMMC存储可选
1*Mini-PCIe支持Wifi/3G/4G
薄型Mini-ITX, DC 12V供电
规格
General
CPU

Intel® Gemini Lake J4005 CPU, Dual-core, up to 2.7 GHz, TDP 10W

CPU can be customized into Intel® Celeron® J4105, N4100, N4200

Memory
DDR4-2400, 1*SO-DIMM, up to 8GB
Storage
1*SATA 3.0, 1*M.2, eMMC optional
Expansion Interface
1*Mini-PCIe (Wifi/3G/4G supported)
BIOS
AMI UEFI BIOS
System
Windows 10, Linux
I/O Interface
Ethernet
1*Realtek® 1Gbps PCIe Ethernet Controller, RJ45
Serial
6*RS232
USB
4*USB 3.0, 6*USB 2.0
Audio

Realtek® ALC662 5.1 channel HDA Codec, with MIC/Line-out and Amplifier

PS/2
1*PS/2 Header (Keyboard & Mouse)
Parallel
1*LPT Header
GPIO
8*Programmable GPIO
Feature Interface
1*Cash Drawer control header
Display
Display Interface

1*VGA: max resolution up to 1920*1200@60Hz
1*HDMI/eDP: HDMI, max resolution up to 4096*2160@60Hz

                       eDP, max resolution up to 4096*2160@60Hz
1*LVDS/eDP: LVDS, Dual Channel 24 bit, max resolution up to 1920*1200@60Hz
                      eDP, max resolution up to 4096*2160@60Hz

Multiple Display
Triple
Mechanical & Environment
Dimension
170*170mm
Power Input
DC 12V
Temperature Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity
Operation: 10%~90%, Storage: 5%~95%, non-condensing
