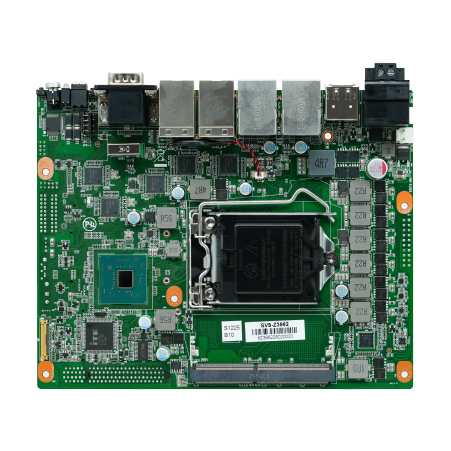

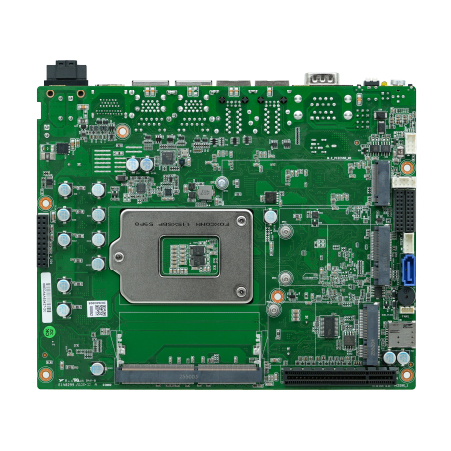

Intel第6/8/9代Core, Pentium, Celeron处理器, Z390芯片, 2*COM, 7*USB, 6*LAN, 1*PCIe x8, 2*Mini-PCIe
|
General |
|
|
CPU |
Intel® Core™ 6/8/9th Gen i3/5/7/9, Pentium®, Celeron® Processors, LGA-1151 |
|
Chipset |
Intel® Z390, max TDP 6W |
|
Memory |
DDR4-2666, 2*SO-DIMM, up to 32GB |
|
Storage |
1*SATA3.0, 1*M.2(Key-M 2280,PCIe3.0 x4, NVMe) |
|
Expansion |
2*Mini PCIe, 1*PCIe x8, 3*Expansion Card |
|
BIOS |
AMI UEFI BIOS |
| OS |
Windows 10/11 64bit, Linux, Ubuntu |
|

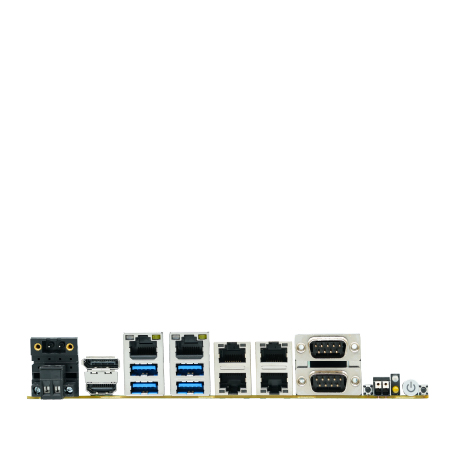

I/O |
|
|
Ethernet |
6*Intel® GbE Controller, RJ45 |
|
Serial |
2*RS232/RS485 |
|
USB |
4*USB3.2 Gen1, 3*USB 2.0 |
|
Audio |
Realtek HDA Codec, with MIC/Line-out |
|
Others |
1*Power Button, 1*LED, 1*FAN, 1*Recovery |
|
Display |
|
|
Display Interface |
1*HDMI: max 3840*2160@30Hz 1*eDP: max 1920*1080@60Hz 1*VGA: max 1920*1200@60Hz |
|
Mechanical & Environment |
|
|
Dimension |
190*153mm |
|
Power Input |
DC 12/19/24V |
| Temperature |
Operation: 0℃~60℃, Storage: -20℃~75℃ |
|
Relative Humidity |
Operation: 10%~90%, Storage: 5%~95%, non-condensing |
