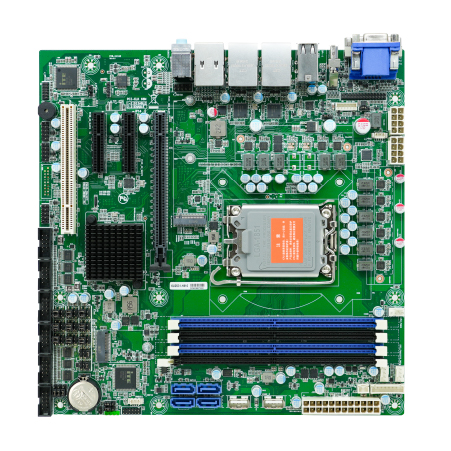

Intel Core Ultra第2代处理器, H810/Q870芯片, 1*DP++, 1*VGA, 1*DVI-D, 1*eDP, 6*COM, 18*USB, 3*LAN
|
General |
|
|
CPU |
Intel® Core™ Ultra Processors (Series 2), LGA-1851 |
|
Chipset |
Intel® H810, max TDP 6W or Q870, max TDP 6W |
|
Memory |
DDR5-5600, 4*U-DIMM |
|
Storage |
4*SATA3.0, 1*M.2 Key-M 2230/2280, PCIe x4/SATA (H810 only SATA) |
|
Expansion |
1*PCIe5.0 x16, 2*PCIe4.0 x4, 1*PCI 1*M.2 E-Key 2230 WIFI+BT |
|
BIOS |
AMI UEFI BIOS |
| OS |
Windows 10/11 64bit, Linux |
|

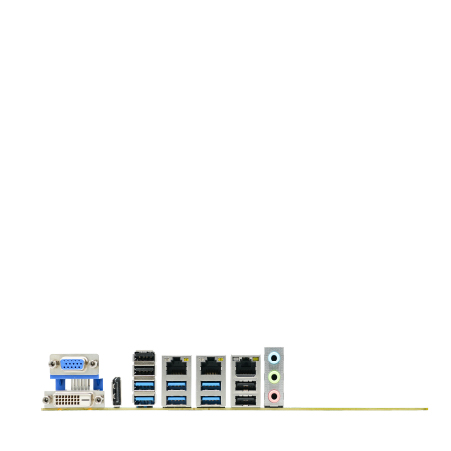

I/O |
|
|
Ethernet |
3*Intel® GbE LAN, RJ45 |
|
Serial |
4*RS232, 1*RS232/RS485/RS422, 1*RS232/RS485 |
|
USB |
10*USB3.0, 8*USB2.0 |
|
Others |
GPIO, Front Panel, 3*FAN, SMBUS, PSON, eSPI, Buzzer, BAT |
|
Display |
|
|
Display Interface |
1*DP++, 1*VGA, 1*DVI-D, 1*eDP |
|
Mechanical & Environment |
|
|
Dimension |
244*244mm |
|
Power Input |
ATX PSU |
| Temperature |
Operation: 0℃~60℃, Storage: -25℃~75℃ |
|
Relative Humidity |
Operation: 10%~90%, Storage: 5%~95%, non-condensing |
