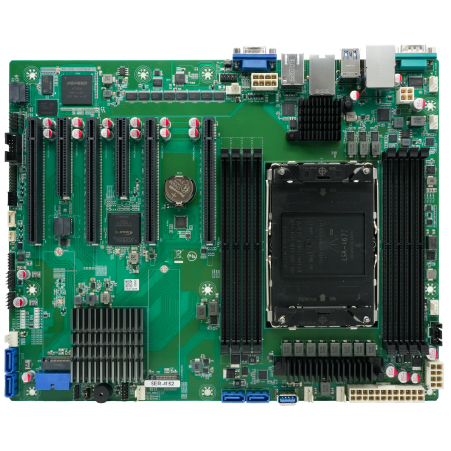

Intel第4/5代至强可扩展处理器, 2*COM, 11*USB, 3*LAN, 4*PCIe x16, 2*PCIe x8
|
General |
|
|
CPU |
4th/5th Gen Intel® Xeon® Scalable Processors, Single Socket LGA-4677 (Socket P+) |
|
Chipset |
Intel® C741 |
| BMC |
ASPEED AST2600 BMC, Support IPMI 2.0 |
|
Memory |
DDR5-5600, 8*ECC R-DIMM, up to 2TB |
|
Storage |
4*SATA3.0, 2*M.2 (M.2 M-Key 2280, PCIe4.0 x2, NVMe) |
|
Expansion |
4*PCIe x16(PCIe5.0 x16), 2*PCIe x8(PCIe5.0 x8+PCIe5.0 x4) |
|
BIOS |
AMI UEFI BIOS |
| OS |
Windows 10/11 64bit, Linux |
| TPM |
TPM2.0 onboard |
|

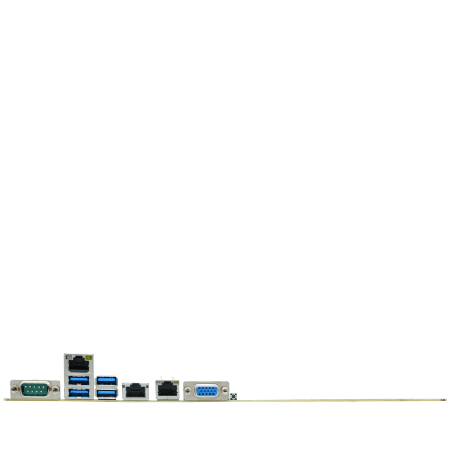

I/O |
|
|
Ethernet |
2*Intel® GbE Controller, RJ45 1*Marvell® AQC113-B1-I 10GbE Controller |
|
Serial |
2*RS232 |
|
USB |
7*USB3.2 Gen1, 4*USB2.0 |
|
Audio |
Realtek HDA Codec, with MIC + Line-Out |
|
Others |
1*SMBus, 1*PMBus, 8*FAN, 1*Front Panel, 8* GPIO, 1*VROC, 1*UID |
|
Display |
|
|
Display Interface |
1*VGA: max 1920*1200¢60Hz |
|
Mechanical & Environment |
|
|
Dimension |
ATX (305*244mm) |
|
Power Input |
ATX PSU |
| Temperature |
Operation: 0℃~45℃, Storage: -20℃~75℃ |
|
Relative Humidity |
5%~95%, non-condensing |
