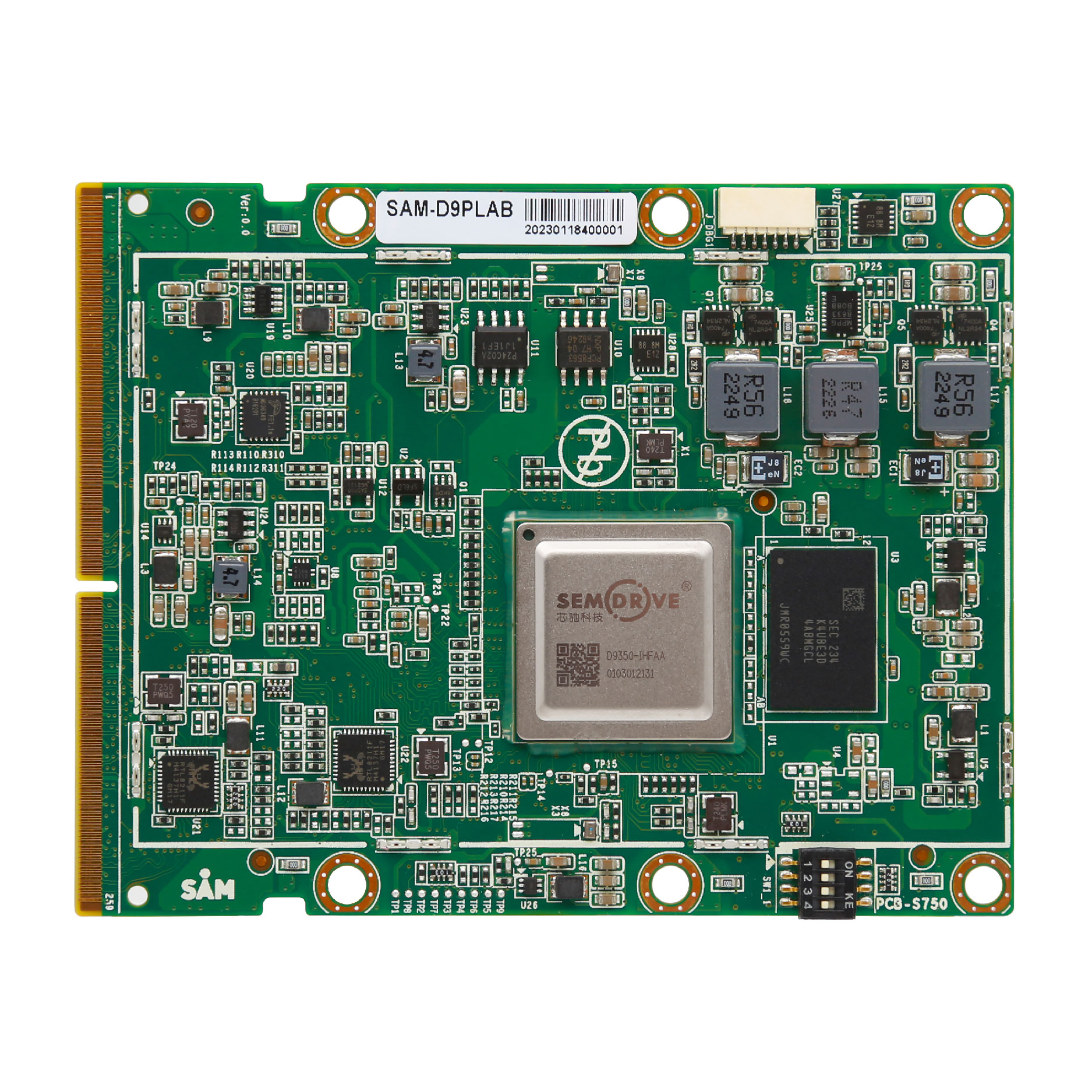

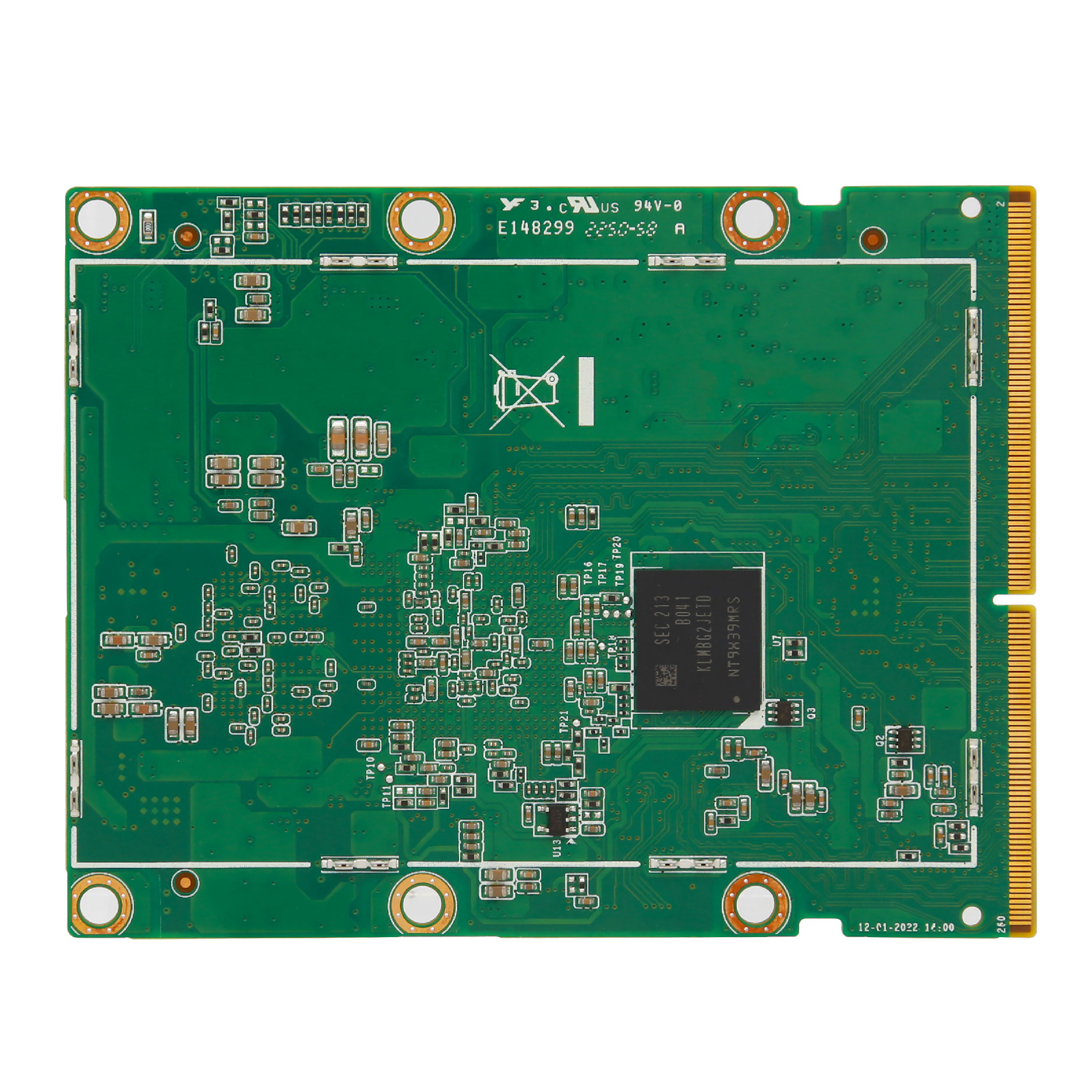

ARM Compute Module,SemiDrive D9 series processor CPU
|
General |
|
|
CPU |
SemiDrive D9 Serial Processor, D9360-JHFAA, Hexa-core Cortex-A55 and Single-core Cortex-R5 |
|
GPU |
IMG PowerVR 9XM GPU |
|
Memory |
SDRAM LPDDR4/LPDDR4X, up to 4GB, on board |
|
Storage |
eMMC 5.1 16/32GB |
|
System |
Android10, Linux |
|
I/O |
|
|
Ethernet |
2*Realtek® GbE Controller |
|
High Speed Signal |
1*PCIe2.0 2*x1/1*x2 |
|
USB |
1*USB 3.2 Gen1 OTG 1*USB 3.2 Gen1 HOST 2*USB2.0 |
|
Serial |
6*UART |
|
GPIO |
17*GPIO |
|
Others |
3*I2C, 1*SDMMC, 2*I2S,1*SPI, 2*CAN |
|
Display |
|
|
Display Interface |
1*LVDS 1*MIPI-DSI 1*MIPI-CSI |
|
Mechanical & Environment |
|
|
Dimension |
70*90mm |
|
Power Input |
5V |
| Temperature |
Operation: 0℃~60℃, Storage: -20℃~75℃ |
|
Relative Humidity |
Operation: 10%~90%, Storage: 5%~95%, non-condensing |
