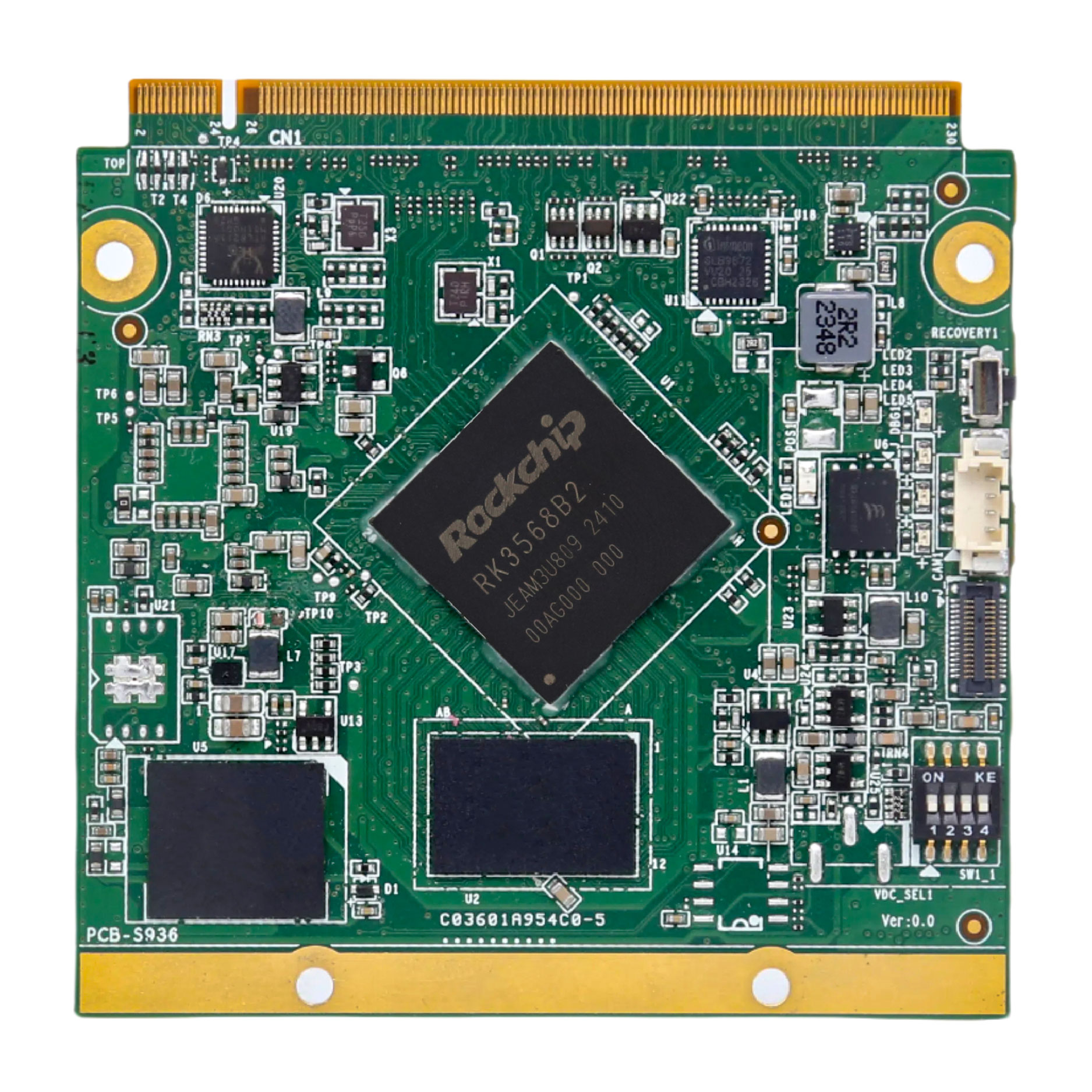

ARM Compute Module, Rockchip RK3568B2 CPU
|
General |
|
|
CPU |
ARM Rockchip® RK3568B2, Quad-Core Cortex-A55, Clock speed up to 2.0GHz |
|
Memory |
LPDDR4/LPDDR4X, 4GB, on board |
|
Storage |
1*eMMC 32G, 1*TF Card |
|
High SpeedSignal |
2*PCIe3.0 x1 or 1*PCIe3.0 x22*PCIe2.0 x1, 2*SATA 3.0 |
|
System |
Android, Linux |
|
I/O |
|
|
Ethernet |
1*PHY |
|
USB |
up to 3*USB 3.2 Gen1, 4*USB 2.0 |
|
Others |
1*Recovery, up to 4*I2C, 4*SPI, 4*UART |
|
Display |
|
|
Display Interface |
1*MIPI-DSI: max 4K@60Hz 1*HDMI: max 4K@60Hz 1*LVDS/eDP: LVDS, max 1980*1200@30Hz eDP, max 4K@30Hz |
|
Mechanical & Environment |
|
|
Dimension |
70*70mm |
|
Power Input |
DC 5V |
| Temperature |
Operation: 0℃~60℃, Storage: -20℃~75℃ |
|
Relative Humidity |
Operation: 10%~90%, Storage: 5%~95%, non-condensing |
