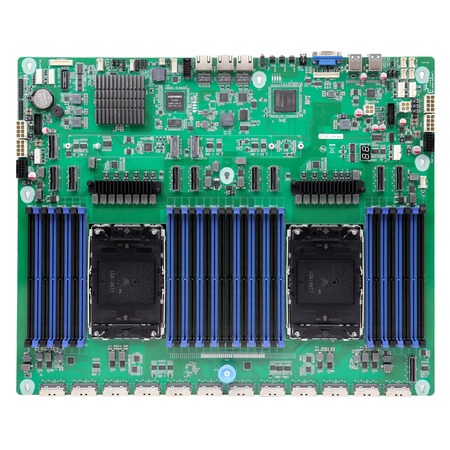

Supports dual Intel 4th/5th Gen Xeon Scalable processors with Intel C741 chipset, 22*MCIO 8i, 8-GPU support, and 32*DDR5 RDIMM/LRDIMM ECC memory up to 8 TB.
| General | |
| CPU | Dual Intel 4th/5th Gen Xeon Scalable Processors, 1+1 Socket LGA-4677 (Socket E), each processor supports Intel UPI, up to 16 GT/s |
| Chipset | Intel C741 |
| Memory | DDR5-4800, 32*ECC RDIMM/LRDIMM, up to 8 TB |
| Storage | 2*M.2 (Key-M, 2280, PCIe Gen3 x2/x4, NVMe/SATA SSD) |
| Expansion | 22*MCIO 8i (20*PCIe 5.0 x8, 1*PCIe 4.0 x8, 1*PCIe 3.0 x8/SATA 6G), supports 8-GPU |
| BIOS | AMI UEFI BIOS |
| OS | Windows Server 2022, Ubuntu 22.04 |
| I/O | |
| Ethernet | 2*Intel i210-AT GbE LAN, RJ45; 1*RTL8211F GbE LAN, RJ45, supports IPMI |
| Serial | 2*RS232 |
| USB | 8*USB 3.2 5Gbps |
| BMC | ASPEED AST2500 BMC, supports IPMI 2.0 |
| Others | Onboard TPM 2.0, 6*System FAN, Case Open, Front Panel, Back Panel, Buzzer |
| Display | |
| Display Interface | 1*VGA, max 1920x1200@60Hz |
| Multiple Display | Single |
| Mechanical & Environment | |
| Dimension | 428*350mm |
| Power Input | 4*Internal DC 12V ATX 8P Power Supply; 1*Internal 5V Standby ATX 4P Power Supply |
| Temperature | Operation: 0C~45C, Storage: -20C~75C |
| Relative Humidity | 5%~95%, non-condensing |
