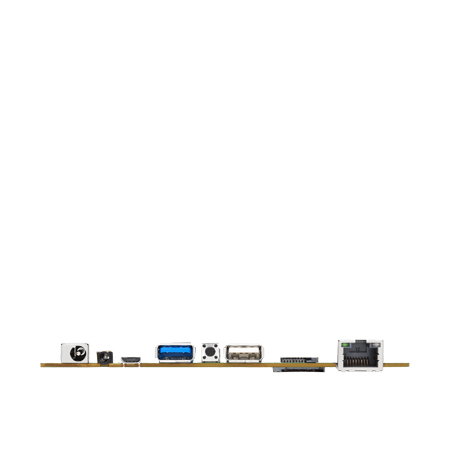

Rockchip RK3568 CPU, 3*COM, 10*USB, 1*LAN, 1*HDMI, 1*eDP, 1*LVDS/eDP, 1*MIPI-DSI
|
General |
|
|
CPU |
ARM Rockchip® RK3568, Quad-Core Cortex-A55, up to 2.0GHz |
|
Memory |
LPDDR4, 2/4GB, on board |
|
Storage |
1*eMMC 8/16/32G, 1*TF |
|
Expansion Interface |
1*Mini-PCIe (support 3G/4G) |
|
OS |
Android, Linux |
|
I/O Interface |
|
|
Ethernet |
1*Realtek® 1Gbps PCIe Ethernet Controller, RJ45 1*Realtek® WIFI+BT module on board (2.4G/5G) |
|
Serial |
1*RS232, 2*RS232/TTL |
|
USB |
1*USB 3.0, 9*USB 2.0 |
|
Audio |
Audio with MIC/Line-out |
|
GPIO |
4*Programmable GPIO |
|
Feature Interface |
1*Cash Drawer Control Header, 1*I2C |
|
Display |
|
|
Display Interface |
1*HDMI: max resolution up to 4096*2160@30Hz 1*eDP: max resolution up to 4096*2160@30Hz or 1920x1080@60Hz 1*MIPI-DSI: max resolution up to 4096*2160@30Hz or 1920x1080@60Hz 1*eDP/LVDS: LVDS, Dual Channel 24 bit, max resolution up to 1920*1080@60Hz eDP, max resolution up to 4096*2160@30Hz or 1920x1080@60Hz |
|
Multiple Display |
Dual |
|
Mechanical & Environment |
|
|
Dimension |
135*90mm |
|
Power Input |
DC 12V |
| Temperature |
Operation: 0℃~60℃, Storage: -25℃~75℃ |
|
Relative Humidity |
Operation: 10%~90%, Storage: 5%~95%, non-condensing |
