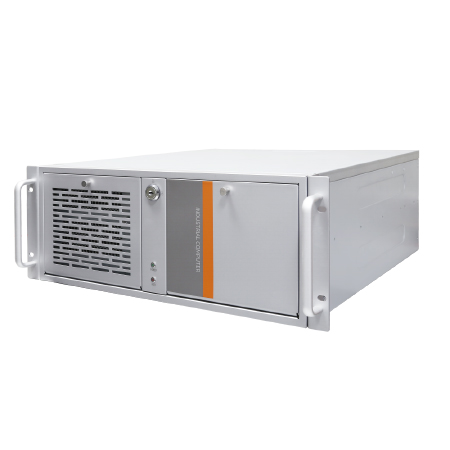

10th Gen Intel Core i3-10100/ i5-10400/ i5-10500/ i5-11400 CPU
|
General |
|
|
CPU |
10th Generation Intel® CoreTM i3-10100/ i5-10400/ i5-10500/ i5-11400 CPU, LGA 1200 |
|
Chipset |
Intel® Q470 Chipset, TDP 6W |
|
Technology |
Intel® Advanced Management Technology (AMT) |
|
Memory |
DDR4-2666, 4*U-DIMM, 64 GB |
|
Storage |
4*SATA 3.0 1*M.2 (Key-M, 2242/2280, PCIe x4/ SATA SSD) |
|
Expansion Interface |
1*PCIe x16 Slot (PCIe x16 Gen3) 1*PCIe x16 Slot (PCIe x8 Gen3) 3*PCIe x4 Slot (PCIe x4 Gen3) 2*PCI, 1*Mini-PCIe (Wifi+4G) |
|
BIOS |
AMI UEFI BIOS |
|
System |
Windows 10, Linux |
|

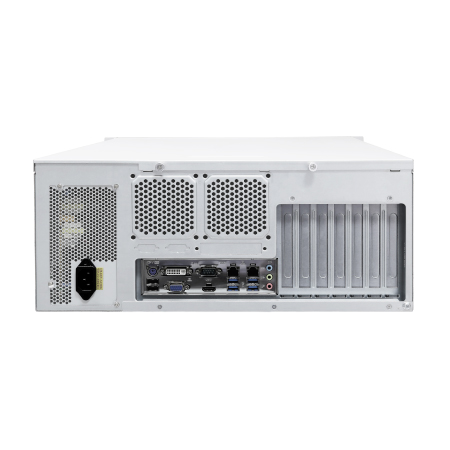

I/O Interface |
|
|
Ethernet |
1*Intel® Gigabit Ethernet Controller I211-AT, RJ45
1*Intel® Gigabit Ethernet Controller I219-LM, RJ45 |
|
Serial |
4*RS232, 1*RS232/RS485/RS422, 1*RS232/RS485 |
|
USB |
6*USB 3.0, 7*USB 2.0 |
|
Audio |
Realtek® ALC662 5.1 channel HDA Codec, with MIC/Line-out/Line-in |
|
PS/2 |
1*PS/2 Port (Keyboard & Mouse) |
|
GPIO |
8*Programmable GPIO |
|
Display |
|
|
Display Interface |
1*DVI-D: max resolution up to 1920*1200@60Hz
1*HDMI 1.4b: max resolution up to 4096*2160@30Hz 1*VGA: max resolution up to 1920*1200@60Hz |
|
Multiple Display |
Triple |
|
Mechanical & Environment |
|
|
Dimension |
482*465*177mm |
|
Power Input |
220V |
| Temperature |
Operation: 0℃~60℃, Storage: -25℃~75℃ |
|
Relative Humidity |
Operation: 10%~90%, Storage: 5%~95%, non-condensing |
