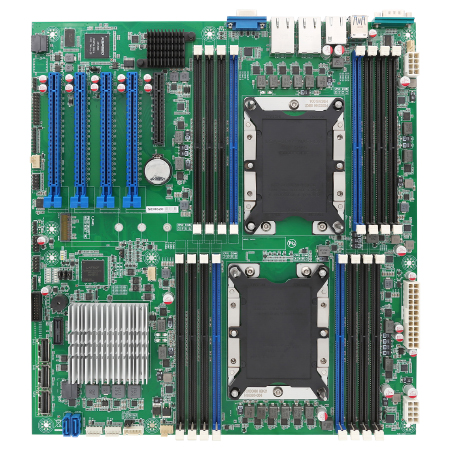

Dual 2nd Gen Intel Xeon Scalable Processors with C62x, 16*DIMM up to 2TB memory, 4*PCIe x16, 1*PCIe x8, 2*10GbE, IPMI
|
General |
|
|
CPU |
Dual 2nd Gen Intel® Xeon® Scalable Processors (Cascade Lake) |
|
Chipset |
Intel® C620 Series (C622/C624/C628) |
|
Memory |
DDR4-2666/2400/2133, 16*DIMM, up to 2TB, support ECC |
|
Storage |
1*M.2 (Key-M, PCIe x4 NVMe SSD, 2242/2260/2280) 12*SATA 3.0 (SAS1~3), 2*SATA 3.0 (SATA 7P) |
|
Expansion Interface |
4*PCIe 3.0 x16, 1*PCIe 3.0 x8 |
|
BIOS |
AMI UEFI BIOS |
|
System |
Linux, Windows Server 2016, Windows 10 |
|
I/O Interface |
|
|
Ethernet |
Dual LAN with Intel® X550 10GBase-T Ethernet Controller, 2*RJ45 1*Realtek® 1Gbps PCIe Ethernet Controller, RJ45 |
| Serial | 1*RS232 |
|
USB |
2*USB 3.0, 4*USB 2.0 |
|
Audio |
Realtek® ALC662 5.1 channel HDA Codec, with MIC/Line-out |
|
Display |
|
|
Display Interface |
1*VGA: max resolution up to 1920*1080@60Hz |
|
Multiple Display |
Single |
|
Mechanical & Environment |
|
|
Dimension |
330*305mm |
|
Power Input |
ATX PSU |
| Temperature |
Operation: 0℃~60℃, Storage: -25℃~75℃ |
|
Relative Humidity |
Operation: 10%~90%, Storage: 5%~95%, non-condensing |
