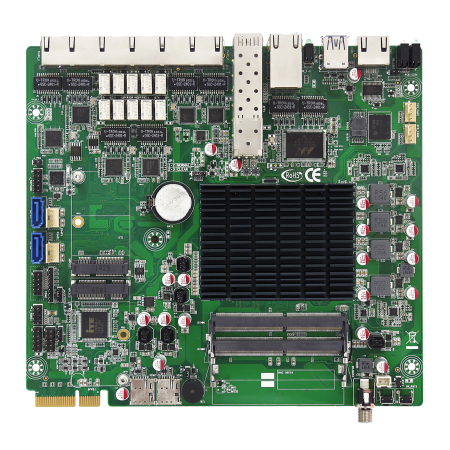

Intel Elkhart Lake Pentium and Celeron CPU, 2*SFP, 6*GbE LAN, 2*3rd Bypass, 2*M.2
|
General |
|
|
CPU |
Intel® Elkhart Lake Pentium and Celeron N and J CPU. |
|
Memory |
DDR4-3200, 2*SO-DIMM, up to 32GB |
|
Storage |
1*SATA 3.0/ M.2 SATA SSD, 1*CF Card Slot |
|
Expansion Interface |
1*M.2 (Key-E, 2230, Wifi+BT)/ PCIe x4 |
|
BIOS |
AMI UEFI BIOS |
|
System |
Windows 8.1/10, Linux |
|

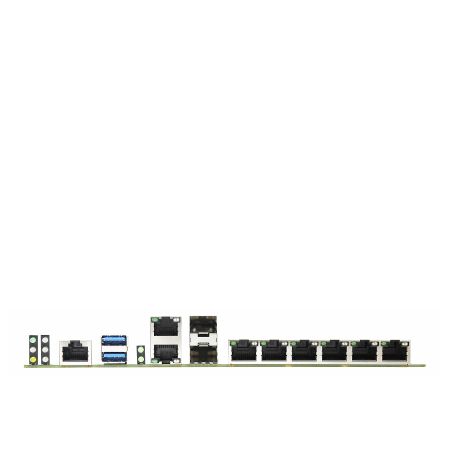

I/O Interface |
|
|
Ethernet |
3*Marvell® 1Gbps PCIe PHY, 2*SFP, 1*RJ45 5*Intel® 1Gbps PCIe Ethernet Controller, 5*RJ45
Supports 2 pairs of 3rd gen Bypass |
|
Serial |
2*RS232 |
|
USB |
1*USB 3.0, 3*USB 2.0 |
|
PS/2 |
1*PS/2 Header (Keyboard & Mouse) |
|
GPIO |
8*Programmable GPIO |
|
Display |
|
|
Display Interface |
1*VGA, max resolution up to 1920*1080@60Hz |
|
Mechanical & Environment |
|
|
Dimension |
212*192mm |
|
Power Input |
DC 12V |
| Temperature |
Operation: 0℃~60℃, Storage: -25℃~75℃ |
|
Relative Humidity |
Operation: 10%~90%, Storage: 5%~95%, non-condensing |
