Intel Coffee Lake-R 9th Gen Core i3-9100/ i5-9400/ i7-9700 CPU with H310

Intel Coffee Lake-R 9th Generation Core i3-9100/ i5-9400/ i7-9700 CPU with Intel H310 chipset

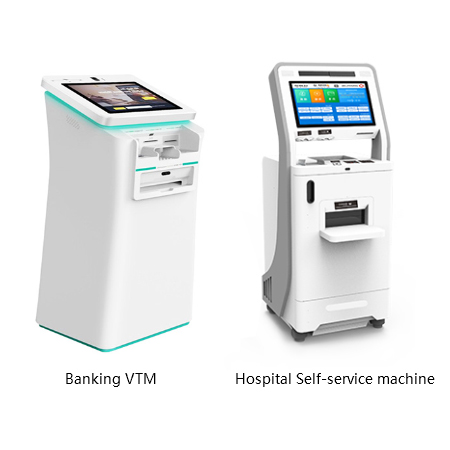

Recommended for Banking VTM and Hospital Self-service machine

Supports USB recovery tool jointly developed by Seavo & Intel

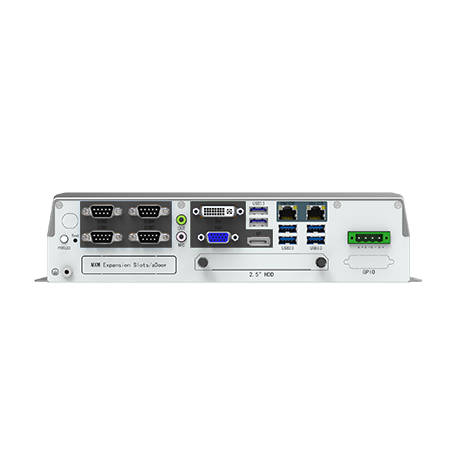

2*GbE LAN, 6*USB 3.0, 4*COM, 16*GPIO

1*DVI, 1*DP, 1*Line-out, 1*MIC

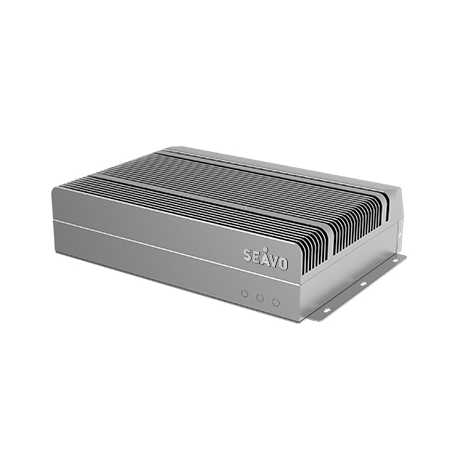

Fanless design, DC 18-36V Input

Driver Downloads

Specification

General
CPU	Intel^® Coffee Lake-R 9^thGeneration Core^TM i3-9100/ i5-9400/ i7-9700 CPU
Chipset	Intel^® H310 Chipset
Memory	DDR4-2400, 16 GB
Storage	1M.2 SSD 256 GB, 2SATA 3.0
Expansion Interface	1*Mini-PCIe (WiFi or 4G)
BIOS	AMI UEFI BIOS
System	Windows 10, Linux
I/O Interface
Ethernet	2*Intel^® 1Gbps PCIe Ethernet Controller, RJ45
Serial	4*RS232 DB9
USB	6*USB 3.0
Audio	Realtek^® ALC662 5.1 channel HDA Codec, with MIC/Line-out
PS/2	1*PS/2 Port (Keyboard)
Parallel	1*LPT Header
GPIO	20pin GPIO
Display
Display Interface	1VGA: max resolution up to 20481536@60Hz 1DVI-D: max resolution up to 19201200@30Hz 1DP: max resolution up to 40962304@60Hz
Multiple Display	Dual
Mechanical & Environment
Dimension	26819467mm
Power Input	DC 18-36V
Temperature	Operation: -20℃~60℃, Storage: -40℃~75℃
Relative Humidity	Operation: 10%~90%, Storage: 5%~95%, non-condensing
