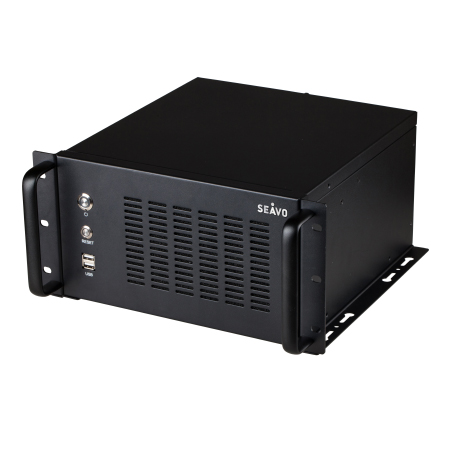

Intel Coffee Lake-R 9th Gen Core i3-9100/ i5-9400/ i7-9700 CPU with H310

Intel Coffee Lake-R 9th Generation Core i3-9100/ i5-9400/ i7-9700 CPU with Intel H310 chipset

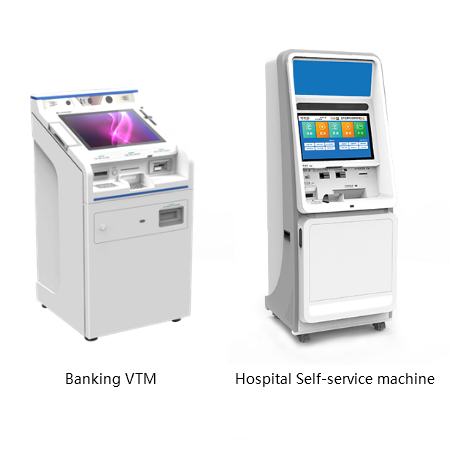

Recommended for Banking VTM and Hospital Self-service machine

Supports USB recovery tool jointly developed by Seavo & Intel

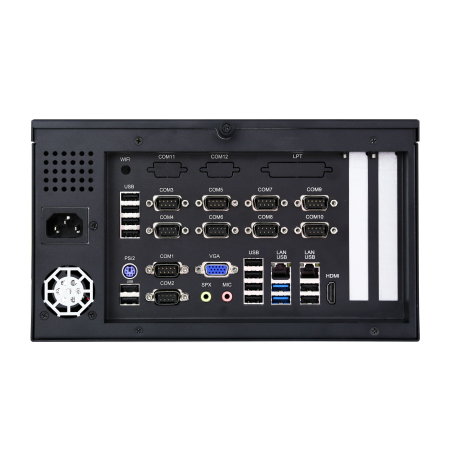

14*USB, up to 12*COM, 1*LPT, 1*PS/2, 1*VGA, 1*HDMI

1*PCIe x16, 2*GbE LAN, 1*Wifi+BT, 1*Line-out, 1*MIC

Driver Downloads

Specification

General
CPU	Intel^® Coffee Lake-R 9^thGeneration Core^TM i3-9100/ i5-9400/ i7-9700 CPU
Chipset	Intel^® H310 Chipset
Memory	DDR4-2400, 16 GB
Storage	1mSATA SSD 256 GB, 2SATA 3.0
Expansion Interface	1*PCIe x16
BIOS	AMI UEFI BIOS
System	Windows 10, Linux
I/O Interface
Ethernet	2*Realtek^® 1Gbps PCIe Ethernet Controller, RJ45
Serial	Up to 12*RS232
USB	2USB 3.0, 12USB 2.0
Audio	Realtek^® ALC662 5.1 channel HDA Codec, with MIC/Line-out
PS/2	1*PS/2 Port (Keyboard)
Parallel	1*LPT Header
GPIO	8*Programmable GPIO
Display
Display Interface	1VGA: max resolution up to 19201200@60Hz 1HDMI: max resolution up to 40962160@24Hz
Multiple Display	Dual
Mechanical & Environment
Dimension	300240170mm
Power Input	220V
Temperature	Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity	Operation: 10%~90%, Storage: 5%~95%, non-condensing
