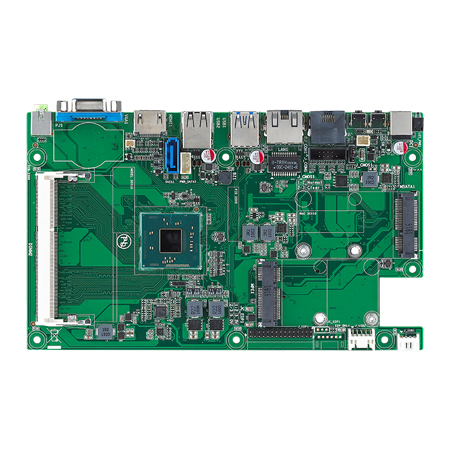

SV-1900-DS

Digital Signage Solution, Intel Celeron J1900 CPU, 1*VGA, 1*HDMI, 1*eDP, 2*Mini-PCIe

Digital Signage Solution
Intel Bay Trail Celeron J1900 CPU
6*USB, 2*COM, 1*GbE LAN
Supports Dual display of VGA, HDMI and eDP
2*Mini-PCIe (1*mSATA, 1*Wifi/3G/4G)
DC 12V Power Input
Specification
General
CPU
Intel® Celeron® J1900CPU, Quad-core, up to 2.42 GHz, TDP 10W
Memory
DDR3L-1333,2*SO-DIMM, up to 16 GB
Storage
1*SATA2.0, 1*mSATA
Expansion Interface
2*Mini-PCIe(1*mSATA, 1*Wifi/3G/4G supported)
BIOS
AMIUEFI BIOS
System
Windows7/8.1/10, Linux
I/O Interface
Ethernet
1*Realtek® 1GbpsPCIe Ethernet Controller, RJ45
Serial
2*RS232
USB
1*USB3.0, 5*USB 2.0
Audio
Realtek® 5.1channel HDA Codec, with MIC/Line-out
Display
Display Interface

1*VGA: max resolution up to 2560*1600@60Hz

1*HDMI: max resolution up to1920*1200@60Hz

1*eDP: max resolutionup to 1920*1200@60Hz
Multiple Display
Dual
Mechanical & Environment
Dimension
185*110mm
Power Input
DC12V
Temperature Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity
Operation: 10%~90%, Storage: 5%~95%, non-condensing
