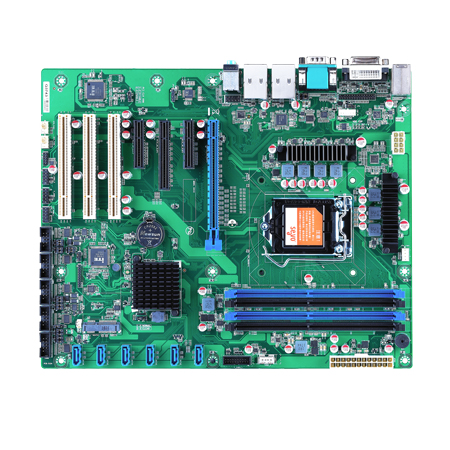

SV4-Q3743

Intel Coffee Lake 8代Core i3/i5/i7处理器(LGA 1151), 4*PCI-E, 3*PCI, 6*COM, 2*Intel LAN, 6*SATA 3.0, ATX (305*244mm)

支持Intel Coffee Lake 8代Core i3/i5/i7处理器(LGA 1151)
采用Intel Q370芯片组
提供6*COM, 13*USB, 2*Intel千兆LAN
提供1*VGA, 1*HDMI, 1*DVI, 1*eDP, 支持三屏异显
提供1*PCI-E 16X, 1*PCI-E 8X, 2*PCI-E 4X, 3*PCI
支持vPro、AMT、RAID、TPM 2.0
规格
General
CPU
Intel® Pentium®/ Celeron®/ 8th Generation CoreTM i3/i5/i7 CPU, LGA1151
Chipset
Intel® Q370 Chipset, TDP 6W
Memory
Up to 64 GB DDR4 2666/2400 MHz, 4*DIMM
Storage
5*SATA 3.0, 1*SATA3.0/ mSATA
Expansion Interface
1*PCI-E 16X, 1*PCI-E 8X, 2*PCI-E 4X, 3*PCI
BIOS
AMI UEFI BIOS
System
Windows 10, Linux
I/O Interface
Serial Port
6*RS232 (COM3, COM4 RS485 optional)
USB
6*USB 3.0, 7*USB 2.0
Ethernet 2*Intel® PCI-E LAN for 1000Mbps
Audio
Realtek® ALC662 5.1 channel HDA Codec, supports MIC/Line-out/Line-in Ports
PS/2
1*PS/2
Parallel Port
Null
GPIO
8 programmable GPIO
Feature Interface
Null
Display
Display Interface

1*VGA:max resolution up to 1920*1200

1*HDMI 1.4b:max resolution up to 4096*2160

1*DVI-D:max resolution up to 1920*1200

1*eDP:max resolution up to 4096*2304

Multiple Display
Triple
Mechanical & Environment
Dimension
ATX, 305*244mm
Power Input
ATX PSU
Temperature Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity
Operation: 10%~90%, Storage: 5%~95%, non-condensing
