SV1-19016EP

Intel® Bay Trail J1900处理器, 6*COM, 提供钱箱和触摸屏专用接口, 支持双eDP显示, DC12V供电

采用Intel® Bay Trail J1900处理器
提供6*COM, 8*USB, 1*千兆LAN
提供1*VGA, 1*VGA/eDP, 1*LVDS/eDP, 支持双eDP显示
提供钱箱专用RJ11接口, 触摸屏控制接口
DC 12V或ATX供电可选
规格
General
CPU
Intel® Bay Trail J1900 CPU, Quad-core, up to2.42 GHz, TDP 10W
Chipset
Null
Memory
Up to 8 GB DDR3L 1333 MHz, 1*SO-DIMM
Storage
2*SATA 2.0
Expansion Interface
1*Mini-PCIe (mSATA/WiFi/3G/4G Supported)
BIOS
AMI UEFI BIOS
System
Windows 7/8/10, Linux, Android

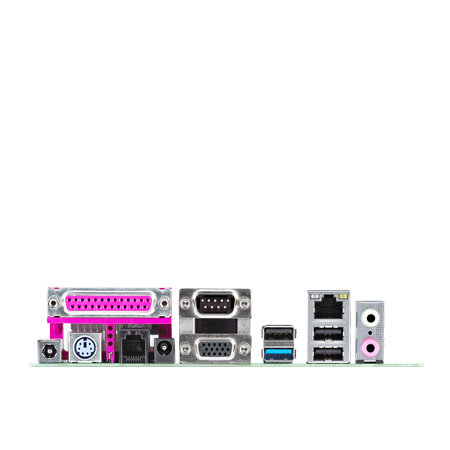

I/O Interface
Serial Port
6*RS232 (COM5 TTL optional)
USB
1*USB 3.0, 7*USB 2.0 (4*on rear I/O, 4*header)
Ethernet 1*Realtek® PCI-E LAN for 1000Mbps
Audio
Realtek® ALC662 5.1 channel HDA Codec, supports MIC/Line-outPorts
PS/2
1*PS/2 (Keyboard Supported)
Parallel Port
1*LPT
GPIO
8 programmable GPIO
Feature Interface

1*RJ11 Port (Cash Drawer)

1*Touch PanelController Pin Header
Display
Display Interface

1*VGA: max resolution up to 2560*1600

1*VGA/eDP: max resolution up to 1920*1200

1*LVDS/eDP:Dual Channel 24bit, max resolution up to 1920*1200

eDP max resolutionupto 1920*1080
Multiple Display
Dual
Mechanical & Environment
Dimension
Mini-ITX, 170*170mm
Power Input
ATX PSU or DC 12V
Temperature Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity
Operation: 10%~90%, Storage: 5%~95%, non-condensing
