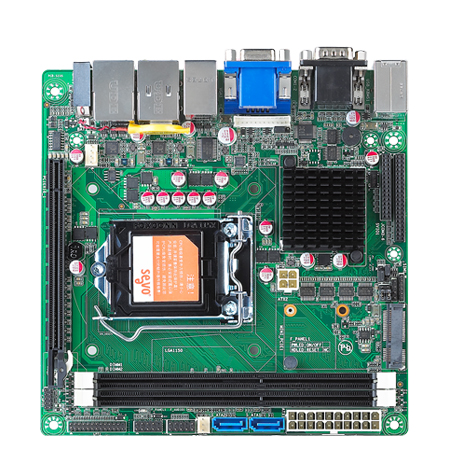

SV1-B8526C

Intel 4th Gen Core i3/i5/i7 CPU (LGA1150) with B85, Double-layer Rear I/O which can expand to 18*COM and 18*USB

Supports Intel 4th Gen Core i3/i5/i7 CPU (LGA1150) with Intel B85 chipset

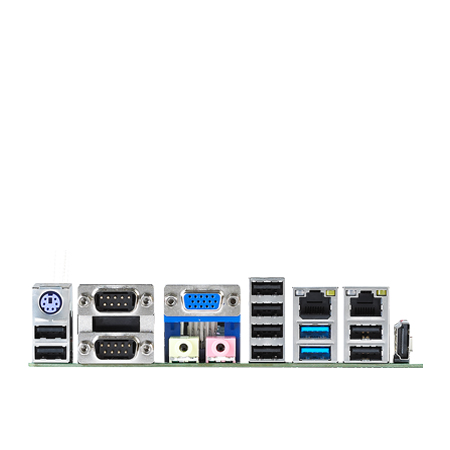

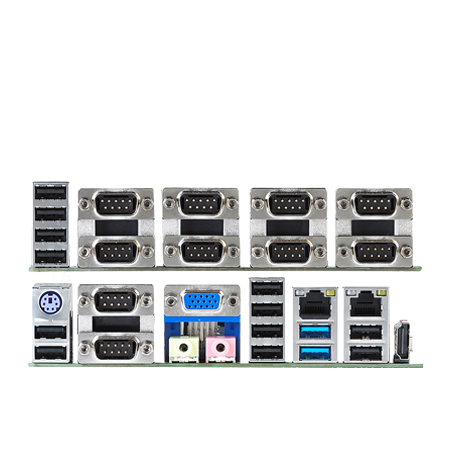

Double-layer Rear I/O which can expand to 18*COM and 18*USB (use SV-M5 I/O Extension Modules)
Supports dual display of VGA and HDMI
2*1000 Mbps LAN and 1*PCI-E 16X
2*Mini-PCIe (Support 1*mSATA, 1*Wifi+3G/4G)
Specification
General
CPU
Intel® Pentium®/ Celeron®/ 4th Generation CoreTM i3/i5/i7 CPU, LGA1150
Chipset
Intel® B85 Chipset, TDP 4.1W
Memory
Up to 16 GB DDR3 1600/1333 MHz, 2*DIMM
Storage
1*SATA2.0, 1*SATA 3.0, 1*mSATA
Expansion Interface
1*PCI-E 16X, 2*Mini-PCIe (1*mSATA Supported, 1*Wifi/3G/4G Supported)
BIOS
AMI UEFI BIOS
System
Windows 7/8/10, Linux
I/O Interface
Serial Port
6*RS232 (Up to 18*RS232 with SV-M5-CU)
USB
2*USB 3.0, 8*USB 2.0 (Up to 18*USB with SV-M5-CU)
Ethernet 2*Realtek® PCI-E LAN for 1000Mbps
Audio
Realtek® ALC662 5.1 channel HDA Codec, supports MIC/Line-out Ports
PS/2
1*PS/2 (Keyboard Supported)
Parallel Port
1*LPT
GPIO
8 programmable GPIO
Feature Interface
Null
Display
Display Interface

1*VGA: max resolution up to 1920*1200@60Hz
1*HDMI: max resolution up to 1920*1200@60Hz

Multiple Display
Dual
Mechanical & Environment
Dimension
Mini-ITX, 170*170mm
Power Input
ATX PSU
Temperature Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity
Operation: 10%~90%, Storage: 5%~95%, non-condensing
